PISTON AIR COMPRESSOR 20 HP
- :15U-9.5V5
- :6 Months
- :Call
- :
 |  |

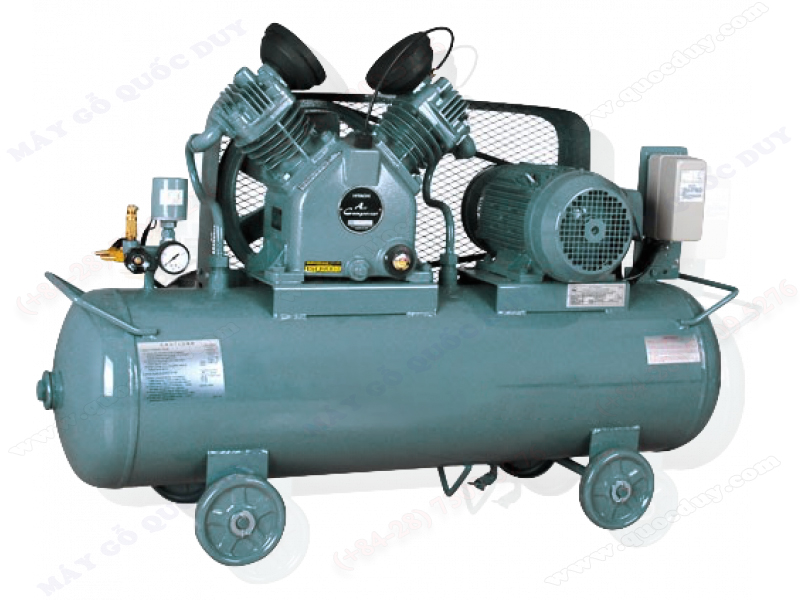

PISTON AIR COMPRESSOR 20 HP
Model : 15U-9.5V5
|
Specifications
|
|
|
Driven motor
|
: 15KW (20HP): 15KW (20HP)
|
|
Working pressure
|
: 0.93 MBar
|
|
Piston displacement
|
: 1650 (l/min)
|
|
Piston(Size*Qty')(mm)
|
: 110 x 110 x 2 mm (Dài)
: 82x110x1 mm (Cao)
|
|
Revolution
|
: 1000 (RPM)
|
|
Air receiver
|
: 280 L
|
|
Voltage
|
: 3-phase 380 V - 50 H
|
|
Dimension
|
: 2028 x 734 x 1222 mm
|
|
Weight
|
: 462 Kg
|
