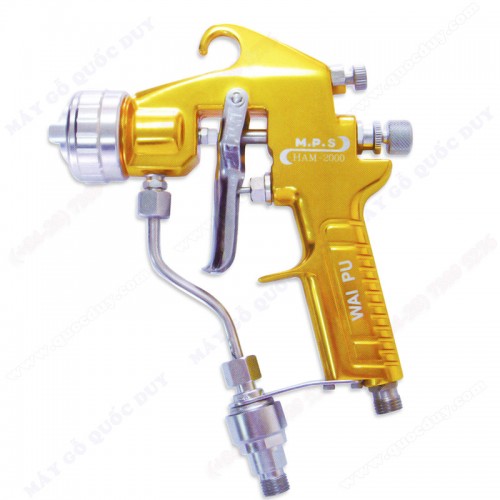

PORTABLE MIDDLE PRESSURE ASSISTANT AIR SPRAY GUN

Model: HAM-2000
sung-son-tiet-kiem-airmix-ham2000
Features:

1. Save the massive coatings cost,compared to the normal air spray gun can save the about 40% coating quantity.

2. Saving the spray time also can be achieved fast spraying effect.

3. Atomized well,to improve the shortcoming of high pressure airless type spray gun atomize,has fast and high efficiency merit.

Applications:

1. Wooden furniture sealer and top coat.

2. Mechanical plate work painting

3. Strip shape painting.

4. Frame painting.

5. Thick painting spraying.


Specifications:

Nozzle choice way:

  EX:X X X

        A   B

   A = Spray breadth

   B = Nozzle bore

   117 = 10˚   Nozzle bore: 0.17 m/m

   213 = 20˚   Nozzle bore: 0.13 m/m

   315 = 30˚   Nozzle bore: 0.15 m/m

   407 = 40˚   Nozzle bore: 0.07 m/m

 - Paint Inlet Size   :1/4"

 - Air Inlet Size:1/4"

 - Max Air Pressure  :5.5bar

 - Max Paint Pressure:140bar

 - Atomize Assisted Air Pressure:0~4bar

 - Connect of fluid Material  :304#stainless. Teflon

 - Net Weight  :592g

 - Temperture Range : 4.4~70℃

 - Filter  :60# 、 80# 、 100# 、 150# 、 200#
