RAG WHEEL ROLLER FOR WOOD WAX POLISHING AND BUFFING MACHINE

RAG WHEEL ROLLER FOR WOOD WAX POLISHING AND BUFFING MACHINE
  • This Polishing Machine is designed for polishing of plane panels finished with polyester and polyurethane or with other types of paint...

  • :MP100-M2
  • :Call
  • :

RAG WHEEL ROLLER FOR WOOD WAX POLISHING AND BUFFING MACHINE

Model:  MP100-M2

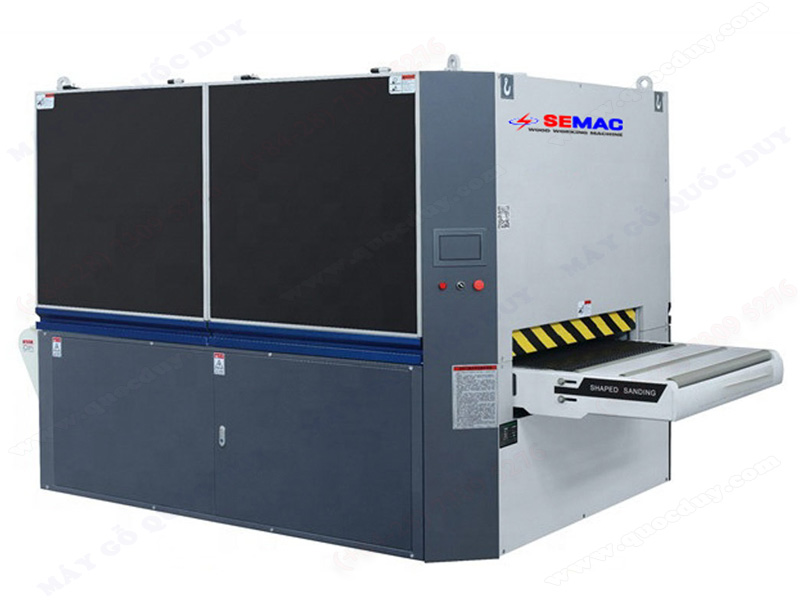

MP100-M2-may-danh-bong-2-truc-kho-1m
Features

1) This Polishing Machine is designed for polishing of plane panels finished with polyester and polyurethane or with other types of paint. The machine is also used for polishing water based paints employed in some European countries. The rugged welded steel structure of the machine guarantees its stability and a long working life.

2) The machine build with vacuum table to make sure small pieces be well polished, 2 polish rolls are made up of cotton disks. One roll is perpendiculr to the working direction while the second roll has an inclination of 10 degree. This enables the second roll to remove the processing marks left on the panel y the first roll. The two rolls have a swinging movement perpendicular to the panels to be processed. This system has been designed to grant a higher finishing quality.

3) This machine requires furthermore less passages and grants a consequent raise of production.

Specifications
Max. Processing Width
1000mm
Convey Motor Power
0.75kw
Press Roller Lift Motor Power
1 x 0.75kw
Surface Polishing Motor Power
2 x 5.5kw
Vacuum Suction Motor Power
2 x 7.5kw
Swing Motor Power
2 x 0.37kw
Power Requirement
Customize
