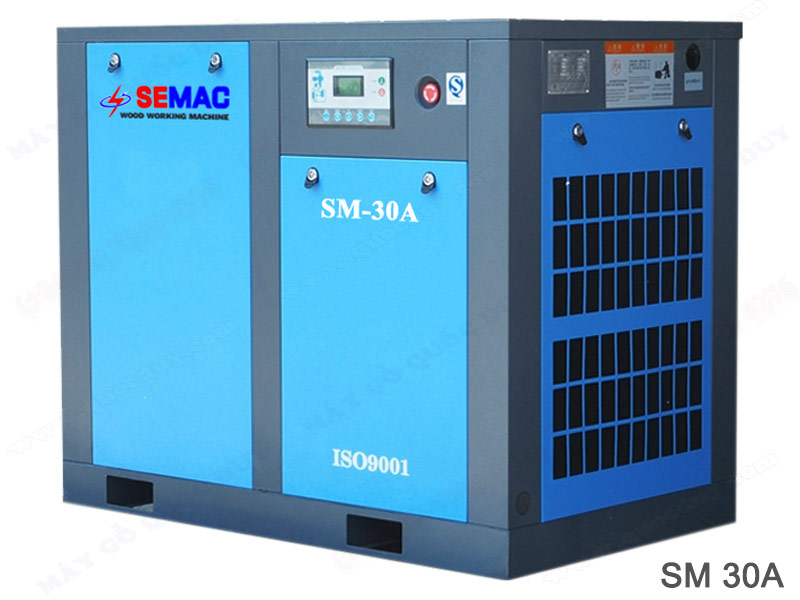

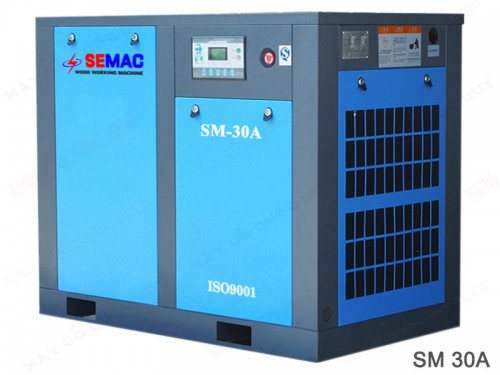

SCREW AIR COMPRESSOR 30HP
MÁY NÉN KHÍ TRỤC VÍT 30HP
Model: SM 30A
Specifications
|
|
Motor rank
|
: IP23 VSD FAG bearing
|
Type
|
: Screw
|
Power Source
|
: AC Power
|
Mute
|
: Yes
|
Voltage
|
: 380v/3ph/50hz or other customized voltage)
|
Motor power
|
: 30HP – 22 KW
|
Cooling Mode
|
: Air Cooled
|
Air Flow:
|
:10 Bar - 3.2 m3/ min
|
Lubricant Volume
|
: 18 L
|
Drive Method
|
: Direct driven
|
Air Outlet Dia.
|
: 25.4 mm
|
Net weight
|
: 520 Kgs
|
Machine size
|
: 1380 x 850 x 1360 mm
|
Packing size
|
: 1480 x 950 x 1540 mm
|
