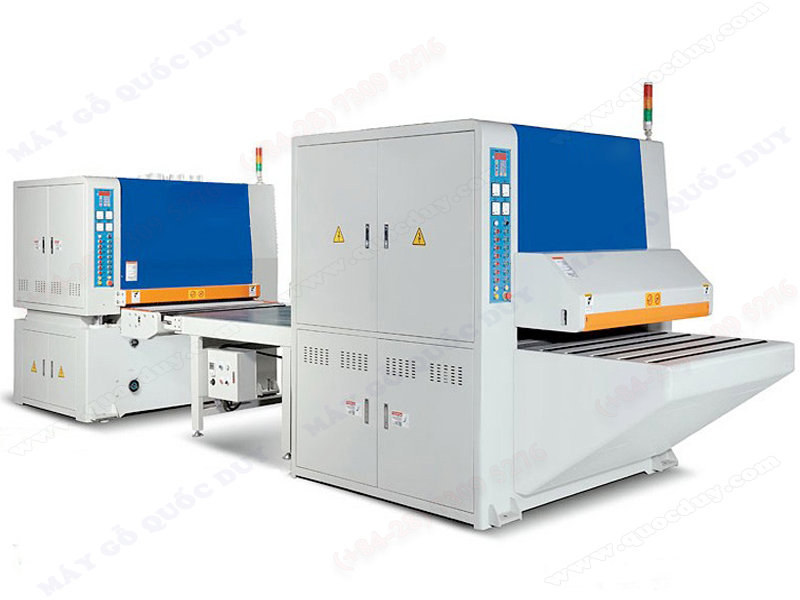

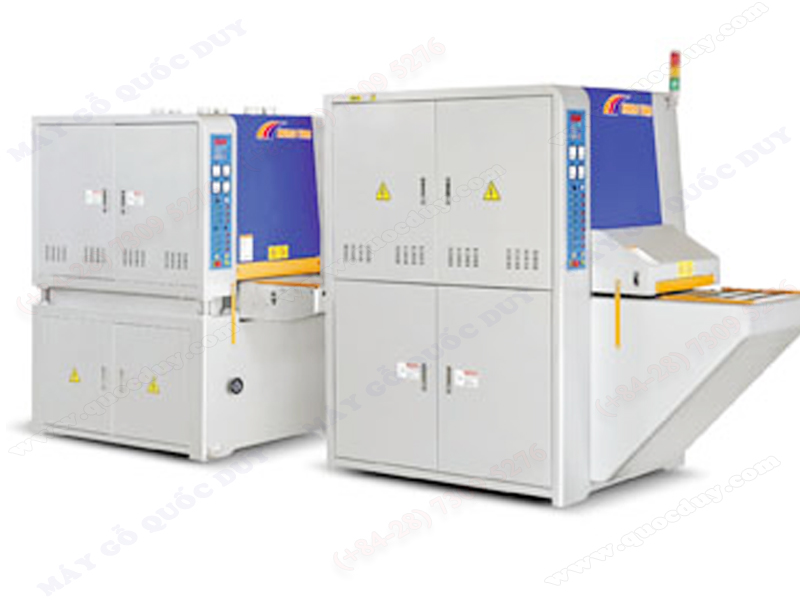

STANDARD TOP-BOTTOM SANDING SYSTEMS 0.6M
STANDARD TOP/ BOTTOM SANDING SYSTEMS 0.6M
BOTTOM SANDING MACHINE 0.6 M – Model: SH – 25RPL
|
|||
Max. working width:
|
: 610 mm
|
||
Max. working thickness:
|
: 3 – 130 mm
|
||
R Spindle
|
Diameter
|
: Ø 220
|
|
Motor
|
: 15 Hp
|
||
P Spindle
|
P roller rear spindle rubber roller
|
: Ø 130
|
|
P roller rear down sanding
|
: Ø 110
|
||
Motor
|
: 10 Hp
|
||
Feeding power
|
: 2 Hp – Frequency inerter controller
|
||
Table hoist power
|
: ½ Hp
|
||
Vacuum feeding motor
|
: 3 Hp
|
||
Sanding belt size
|
: 635 x 1905 mm
|
||
Thickness digital controller.
|
|||
Feeding operation height
|
: 1100mm
|
||
Pressure switch
|
:when air is not enough, It will Stop running auto.
|
||
Pressure use pressure pad and pressure roller.
|
|||
Anti-explosion switch
|
:When sanding belt is broken power off auto and conveyor will down auto to protect conveyor and rubber roller
|
||
CONVEYOR
|
|||
Spindle power:
|
: 1/2HP Frequency inverter controller)
|
||
Max. working width
|
: 610 mm
|
||
Max. working length:
|
: 1500 mm
|
||
Distance from feeder surface to floor
|
: 1100mm
|
||
TOP SANDING MACHINE 0.6 M– Model: SH – 25RP
|
|||
Max. working width
|
: 610 mm
|
||
Max. working thickness
|
: 3 – 130 mm
|
||
R Spindle
|
Diameter
|
: Ø 220
|
|
Motor
|
: 15 Hp
|
||
P Spindle
|
P roller rear spindle rubber roller
|
: Ø 130
|
|
P roller rear down sanding
|
: Ø 110
|
||
Motor
|
: 10 Hp
|
||
Feeding power
|
: 2 Hp – Frequency inerter controller
|
||
Table hoist power
|
: ½ Hp
|
||
Vacuum feeding motor
|
: 3 Hp
|
||
Sanding belt size
|
: 635 x 1905 mm
|
||
Thickness digital controller
|
|||
Feeding operation height
|
: 1100mm
|
||
Pressure switch
|
:when air is not enough, It will Stop running auto.
|
||
Pressure use pressure pad and pressure roller
|
|||
Anti-explosion switch
|
:When sanding belt is broken power off auto and conveyor will down auto to protect conveyor and rubber roller.
|
