SYSTEM AUTOMATIC PAINT DOOR
Specification
A. Transverse conveyor: 1 set
|
Machine dimension
|
5000 x 4030 x 2400mm
|
|
Max. Size working (L x W x H)
|
L x W1600 x H40mm
|
|
Min. Size working (L x W x H)
|
L500 x W500 x H5 mm
|
|
Speed working (Inverter)
|
1000 - 3000mm/min
|
|
Conveyor height
|
880mm
|
|
Ray steel conveyors
|
SS41.T = 3mm
|
|
Motor (Motor + ministry decelaration)
|
2HP
|
|
Box control
|
1 set
|
|
Conveyor is thorns belt conveyor
|
|
B. Auto paint sprayer : 1 set
| Motor | 2HP |
| Max. Travel of sprayer | 2000mm |
| Max. Length of working | 1600mm |
C. Paint room: 1 set
|
Size room
|
2000x3000x2400 mm.
|
|
Material steel
|
SS41,surface coating paint.
|
|
Street slightly
|
Air pressure , natural gas ( through filters)
|
|
Lamps fireproof
|
2pcs , 40W x 2
|
|
Check the doors, towers hygienic and spray
|
|
D. Tank water : 1 set
|
Dimension
|
1900 x 3500 x 2400 mm
|
|
Using material stainless steel
|
SUS 304
|
|
Fans smoke
|
5HP-6P-380VAC
|
|
Pump water
|
2HP-4P-220VAC
|
|
Plumbing & valve
|
PVC x 1set
|
E. Paint guns and pumping system : 1 set
|
Motor machine air pressure
|
CBL14 - B x 2 set
|
|
Paint spray
|
2 set
|
|
Spray bell
|
Ø 60mm x 2 set
|
|
Fixed Frame Slider
|
2 set
|
|
High pressure sets
|
2 set
|
|
Control tab PLC
|
1 set
|
|
Screens HDMI
|
1 set
|
|
Gear pumps
|
3cc x 2 set
|
|
Valve three branches
|
2 pcs
|
|
Dryer and air filter
|
1 set
|
|
High-voltage cables
|
12m x 1set
|
|
Tube insulation
|
12m x 1set
|

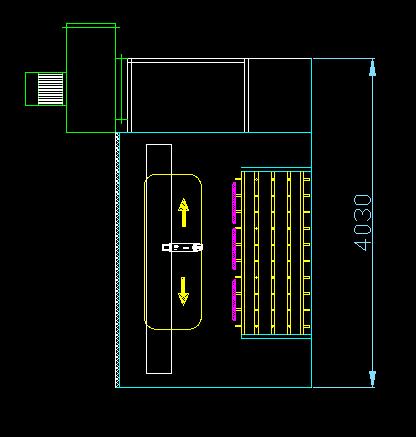

Image viewed from above
