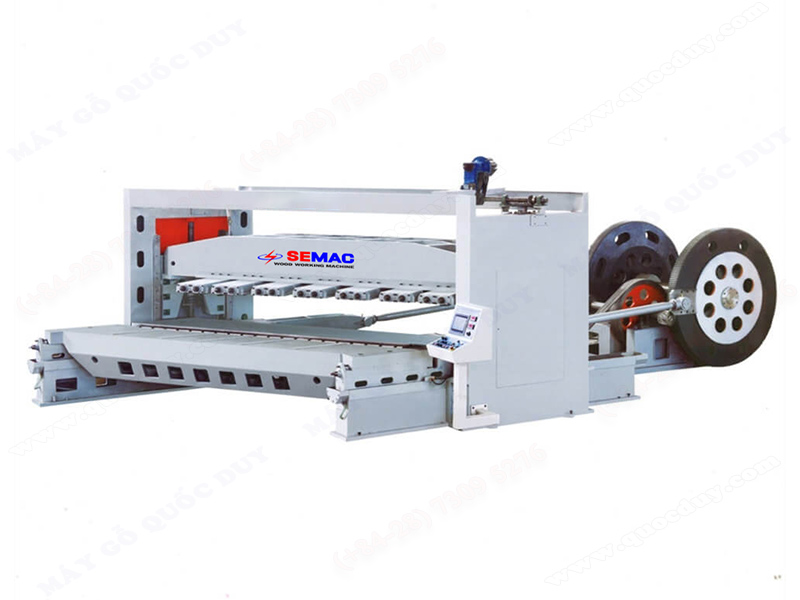

VENEER SLICER
VENEER SLICER
Model: SM 1135B
|
Function
|
|
|
Veneer slicer mainly for slicing solid wood, engineer wood and other composite board, working efficiency is high, and veneer thickness is uniform. It is widely adopt in decorative veneer of plywood, furniture, flooring, construction industry and so on.
|
|
|
Characteristic
|
|
|
Double V-chutes are used for both sides the machine, with high parallel; special polymer wear-resistant material coated on the surface. Machine runs in higher stability and with less friction.

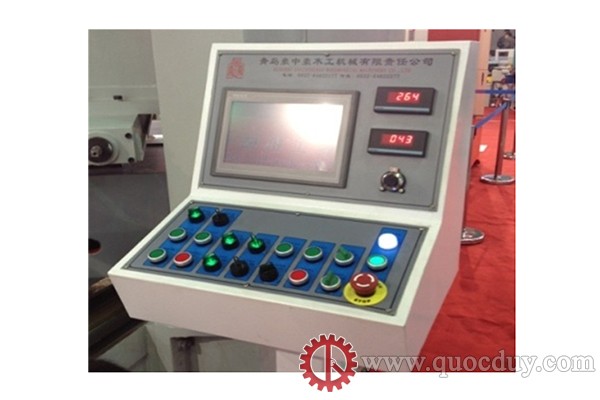

All switch buttons are gathered in a cabinet. Single person can operate the machine avoiding the dangerous caused by fault

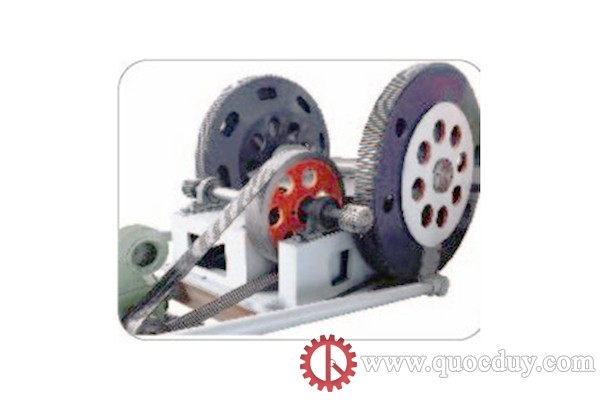

Special designed big size driving gear runs smoothly with a low noise when it runs in a high speed
|
|
|
Specifications
|
|
|
Max cutting size of wood block
|
: 2600*1300*900mm
|
|
Blade size
|
: 3550*200*20mm
|
|
Veneer thickness
|
: 0.1-2mm
|
|
Cut speed
|
: 18-32pcs/min
|
|
Clamping methods
|
: Manual
|
|
Main motor power
|
: 37Kw
|
|
Clamp motor power
|
: Manual or hydraulic motor
|
|
Feeding motor
|
: 4.2Kw (servo)
|
|
Dimension
|
: 9000*4500*2800mm
|
|
Weight
|
: 26T
|
