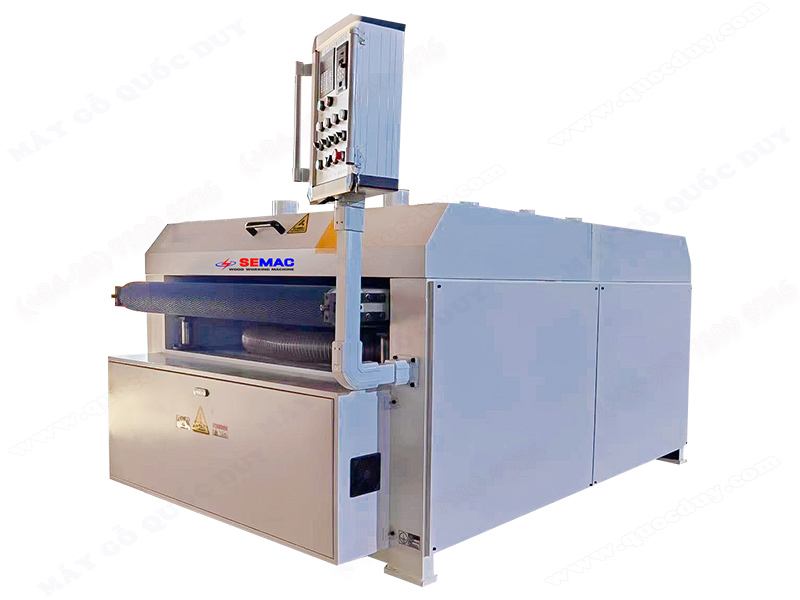

WOOD GRAIN DRAWING MACHINE
WOOD GRAIN DRAWING MACHINE
Model: SMTL 1320 4
Specifications
|
|
Working width
|
: 1300 mm
|
Working thickness
|
: 5 – 100 mm
|
Feeding speed
|
: 0 – 18 m/minute
|
Conveyor motor
|
: 3 kw
|
Roller Size
|
: Ø 130 x 1320 mm
|

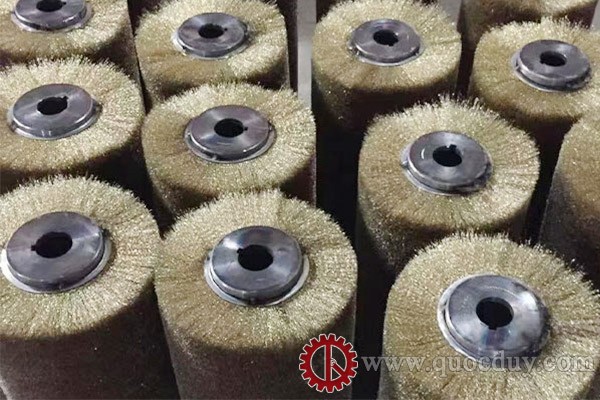

Shaft steel wire 1
|
|
Shaft size
|
: Ø 200 x 1320 mm
|
Steel wire diameter
|
: 0.5 mm
|
Motor
|
: 7.5 kw – 6
|
Shaft steel wire 2
|
|
Shaft size
|
: Ø 200 x 1320 mm
|
Steel wire diameter
|
: 0.3 mm
|
Motor
|
: 7.5 kw - 6
|
Shaft steel wire 3
|
|
Shaft size
|
: Ø 200 x 1320 mm
|
Steel wire diameter
|
: 0.3 mm
|
Motor
|
: 7.5 kw - 6
|
Polishing shaft
|
|
Shaft size
|
: φ 200 x 1320 mm
|
Diameter
|
: 1 mm
|
Motor
|
: 7.5 kw - 6
|
Total power
|
: 34 kw
|
Machine size
|
: 2350 x 1880 x 1750 mm3
|
