WOODWORKING BRUSH PROFILE SANDING MACHINE
WOODWORKING BRUSH PROFILE SANDING MACHINE
Model: SM-1300-9S
Feature | |

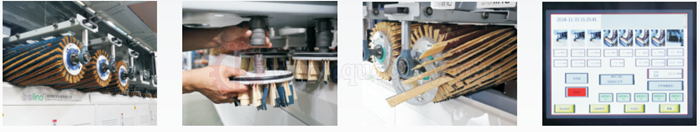

-This machine is a new developed product which features with high efficency and practicability on wood surface sanding,mainly for raw parts polishing and primer sanding of the wood workpieces. -Suitable for sanding and polishing of solid wood,MDf board, veneer board, standard or irregular wood parts etc., it is an ideal equipment for shaped sanding of wood door, window,cabinet door,furniture etc. -With automatic lifting system and varialbe speed on rotation and feeding speed to make sure the sanding quality. -Durable heavy frame and conveying structure provides long service life. -Special design to hold the workpieces, even a small workpieces can proceed sanding process. -Automatic PLC control system and the whole touch screen to minimize the difficulty in process setting. -Free sander combination depends on customer demands and material process purpose. -This machine can greatly improve the working efficiency to save your labor cost, for example:one worker can manual sand 3-6 pieces/hours,this machine can sand 50-100 pieces/hours even more. |
|
Specification | |
Max.width of workpiece
|
1300mm
|
Min.length of workpiece
|
350mm
|
Max.processing height
|
10-100mm
|
Height of working table
|
850mm
|
Conveyor motor power
|
2.2kw
|
Power requirement
|
380V/50Hz
|
Vacuum mouth
|
150mm x 6 pcs
|
Main power
|
15.5 Kw
|
Machine size
|
5350 x 2200 x2100mm
|
Weight
|
5200 Kgs
|
Video |
