Specifications
Processing size range
Min. Width of work-piece	50 mm
Max. Width of work-piece	1200 mm
Max. Length of work-piece	5000 mm
Min. Length of work-piece	250 mm
Max. Thickness of work-piece	48 mm
Min. Thickness of work-piece	10 mm
Working Stoke & Max. Position speed
X axis	5000 mm - 130m/min
Y axis	1680 mm - 80m/min
Z axis	90 mm - 30m/min
U axis	5000 mm - 130m/min
V axis	1200 mm - 80m/min
W axis	100 mm - 30m/min
A axis	1260 mm - 30m/min

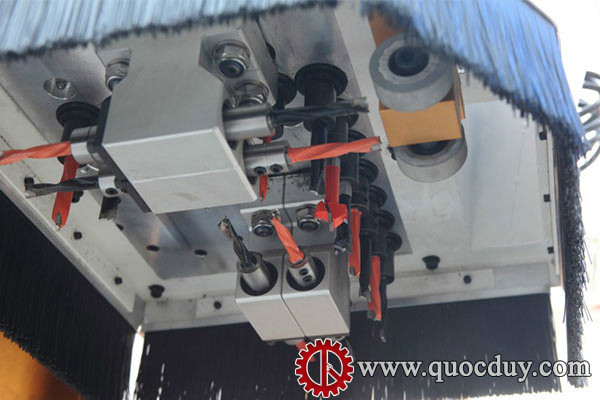

Drilling unit
Vertical spindles	12 ( X axis) + 9 ( Y axis)
Horizontal	8
Drilling box motor speed	3400rmp
Drilling motor power	2.2 kw
Milling unit
Milling motor power	3.5 kw x 2
Spindle speed	18000 rmp
Other data
Working table height	960 mm
Total power	19.2 kw
Voltage	380V/50Hz
Air pressure	0.7-0.8Mpa
Weight	3500kg
Operation eare size	5800 x 2840 x 2200mm
