Model: GABBIANI S115

Features
Single-blade beam saw controlled by PC/PLC control system, designed to cut solid wood panels or panel stacks and its products (chipboards, MDF panels, multilayer panels, plywood panels and fiber panels). The solution to integrate the beam saw inside a flexstore s or flexstore el storage.

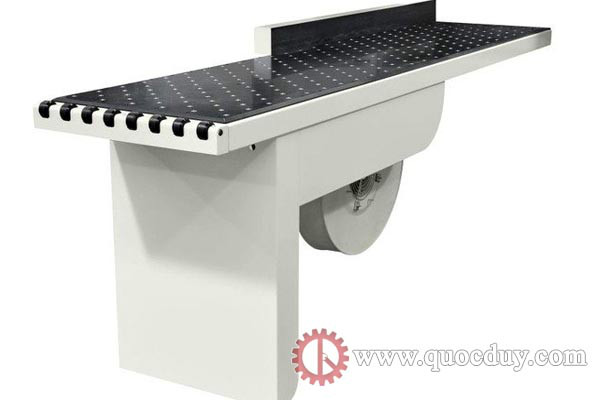

	Selectable air blowing table: an essential tool. The possibility to enable/disable the air blowing device on each table section via independent motors, ensuring optimal sliding of the panels only where it is needed and avoids accidental falling of cut panels temporarily stored on the tables. FLEXCUT unit: incomparable flexibility and productivity. Increasing of productivity up to 30% and space saving up to 20% owing to the simultaneous execution of both rip and cross cuts.
SAW SET: tool changing has never been so easy. In few seconds the "SAW-SET" device carries out a fast and precise tools adjustment due to the electronic setting, allowing an intuitive use of the machine and a productivity increase.
	Meastro Cut: easy and powerful software to programme and create all the panels imaginable. Intuitive, reliableand customizable operator’s interface depending on customers’ needs. Materials stock: creation of a panels storage with an integrated bi-directional connection to Maestro Watch Off-cuts stock: automatic off-cut restocking that will be displayed together with the materials stock Parts handling management during machining: parking solution for end products, off-cuts and scraps.

Specifications
	Gabbiani s 95	Gabbiani s 115
Cutting length	3200/3800/4500 mm
Blade projection	95 mm	115 mm
Saw carriage variable speed (option)	6 - 60 (0 - 135 / 0 - 150) m/min
Pusher variable speed (option)	0 - 60 (0 -70 / 0 - 120) m/min
Main blade motor S6 - 40% (option)	7 (9 - 11 - 15) kw	9 (11 -15 - 18)kw
Scoring unit blade motor 50 Hz	1,8 kw
Main blade / scorer speed 50 Hz	3900/6300
Main blade / scorer blade diameter	380/160 mm	400/160 mm
Number of clamps	5	6
