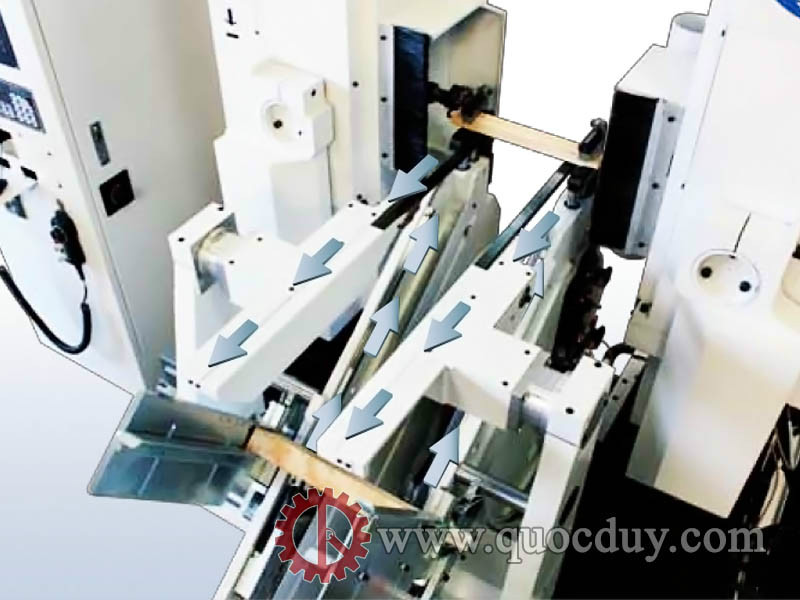

CNC DOUBLE END TENONER

production line
- INDUSTRIAL WOODEN PLANKS SYSTEM
  - Small production line
  - Nesting line
  - Cabinet Line
- SYSTEM MAKE CHAIR
  - Shaping Stage
  - Tenoner Stage
  - Link building Stage
  - Leg angle chair Stage
  - Fisnish Stage
- DOOR MAKING SYSTEM
  - Công đoạn làm khung bao
  - Công đoạn làm cánh cửa
  - Công đoạn làm khung xương
- FINGER JOINT SYSTEM
- LOG MULTI RIP SAW SYSTEM
- PAPER LAMINATING MACHINE
WOODWORKING MACHINE
- CNC MACHINE
  - CNC Nesting Machining
  - Machine router CNC
  - CNC DRILLING MACHINE
  - Machine tenoner CNC
- SAWING MACHINE
  - Straight line ripsaw
  - Sliding table saw
  - Panel saw
  - Cut off saw
  - Four side saw
  - Band saw
  - Horizontal band saw
  - Zig saw
  - Band saw CNC
  - Log saw
  - Radial arm saw
  - Combined machine
  - Double End Saw
  - Máy cắt tạo bọ eke ghế
- EDGE BANDING MACHINE
  - Edge banding machine
  - Automatic edge banding machine
  - Postforming machine
  - Inclined edge banding
- DRILLING MACHINE
  - Multi horizontal drilling machine
  - Multi vertical drilling machine
  - Máy khoan ghế
  - Straight line boring machine
  - Door Lock - Hinge Drilling Machine
  - Máy khoan 2 phương
  - Máy khoan 6 mặt
  - Máy khoan 2 đầu
- SANDING MACHINE
  - Conveyors sanding
  - Round sander
  - Irregular curve sanding
  - Edge sanding
  - Wide belt sanders
  - Lacquered panel sander
  - Milling sanding machine
  - Deformation sanding machine
  - Top-Bottom Sanding Systems
- PLANER MACHINE
  - Double side planer
  - 4 side planer
  - Hand jointer
  - Automatic planer
  - Seat planer
- TENONER MACHINE
  - Hollow chisel mortiser
  - Continuous dovetailer
  - Fully auto louver groovers
  - Oscillating Mortiser
  - Round end tenoner
  - Machine tenoner Oval
- SHAPING MACHINE
  - Copy shaping machine
  - Copy shaping circle machine
  - Spindle shaper machine
- LATHE MACHINE
- ENGRAVING MACHINE
- FINGER JOINT AND CLAMP CARIER
  - Auto finger joint machine
  - Clamp carrier machine
  - High Frequency Press machine
  - Frame assembly machine
- PRESSING MACHINE
  - Hot press equipment
  - Cold press equipment
  - Door Pressing Machine
  - Veneer membrane press
  - Wood bending
  - High frequency press
- GRINDING MACHINE
- VENEER MACHINE
- DOWEL MAKING MACHINE
- POWER FEEDER
- UV COATING MACHINE
- GLUE SPREADER
- WOOD PALLET MAKING MACHINE
- EMBOSSING MACHINE
- WOOD BARKING MACHINE
- DUST COLLECTOR
- AIR COMPRESSOR
- AUXILIARY MACHINE
- Máy cắt bọ eke
- Máy đa chức năng
HARD WARE
- CIRCULAR SAW BLADES
- PCD Diamond Saw Blades
- BORING HEAD
- PLANER KNIFE
- HAND TOOLS
- OTHER
FINISHING LINE
USED MACHINE
- SAWING MACHINE
- SANDING MACHINE
- CNC MACHINE
- EDGE BANDING MACHINE
- SHAPING MACHINE
- FINGER JOINT AND PRESSING MACHINE
- AIR COMPRESSOR
- VENEER MACHINE
- SYSTEM LEATHER MACHINE
- PLASTIC INJECTION MACHINE
- OTHER MACHINE

SPECIFICATION
Max. size of wood	50x145x1500 mm
Max. tenoning size	30x45x125 mm
Max. width of cut( Z-axis)	1500 mm
Max. length of cut( Z-axis)	1300 mm
X-axis feed rate	50 m/ min
X1-axis feed rate	50 m/ min
Y-axis feed rate	50 m/ min
Y1-axis feed rate	50 m/ min
Z-axis feed rate	0.667 m/ min
Spindle speed	0 – 9000 rpm
Spindle motor	3.3 Kw x 2
X1-axis servo motor	0.85 Kw
X2-axis servo motor	0.85 Kw
Y1-axis servo motor	0.85 Kw
Y2-axis servo motor	0.85 Kw
Z-axis servo motor	0.85 Kw
Net weight	2350 Kg
Machine size	3900x1700x1930 mm
VIDEO

CNC DOUBLE END TENONER

CNC DOUBLE END TENONER

Model: DRTB-100

DOUBLE END TENONER ROBOT

CNC AUTOMATIC DOUBLE END TENON MACHINE

CNC TENON MACHINE

MÁY ĐÁNH MỘNG DƯƠNG 2 ĐẦU CNC 4 DAO

CNC TENONING MACHINE

DOUBLE END TENONER ROBOT SMBY 5260
