Model: SMHH 280

Specifications

Max cutting length

: 2800 mm

Max cutting thickness

: 100 mm

Main saw blade diameter

: φ 380/400 mm

Main saw shaft diameter

: φ 60 mm

Main saw shaft rotation speed

: 4000 rpm

Scoring saw blade diameter

: φ 180 mm

Scoring saw shaft diameter

: φ 30mm

Scoring saw shaft rotation speed

: 6900 rpm

Saw carriage forward speed

: 100 m/min

Saw carriage backward speed

: 120 m/min

Main saw motor

: 16 kW

Saw carriage drive motor

: 2.2 kW

Automatic feeding motor

: 1 kW

High-pressure blower motor

: 3 kW

Total power

: 22.2 kW

Automatic feeding speed

: 100 m/min

Air pressure

: 5-7 kg/cm²

Worktable height

: 960 mm

Net weight

: 4500 kg

Machine size

: 5300 x 6300 x 2000 mm

Number of air floats

: 3

Machine structure

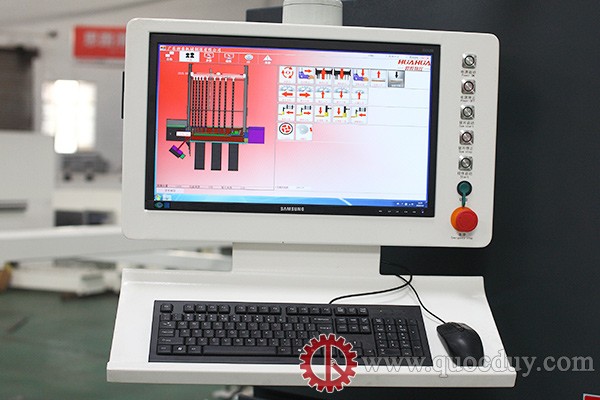

20'' PC control system

1. Easy operation, safety & reliable.

2. Which has complete operating hints and troubleshooting guide functions.

3. It’s cutting plan can edit manually; can simulate or execute cutting plans.

4.Can compatible with bar code manage software or factory automation software.

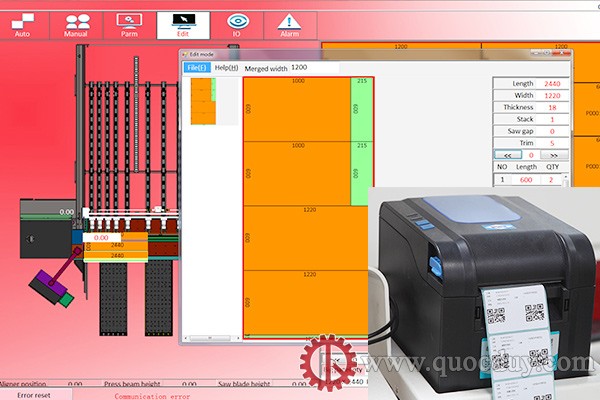

Cutting optimization software and laber Printer

Optimization software: Automatically generate the optimazation sawing solution, can save personal calculation time and enhancing material utilization efficiency, which can save labor cost, material and inhance the efficiency.

Label printer: one cutting board stick one label with all information on the label, such like customer name, board name, board thickness, width, length, easy for factory to control production.

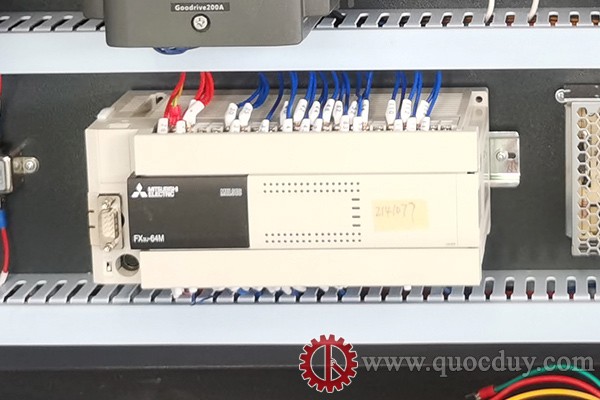

PLC

Japan Mitsubishi PLC control system.

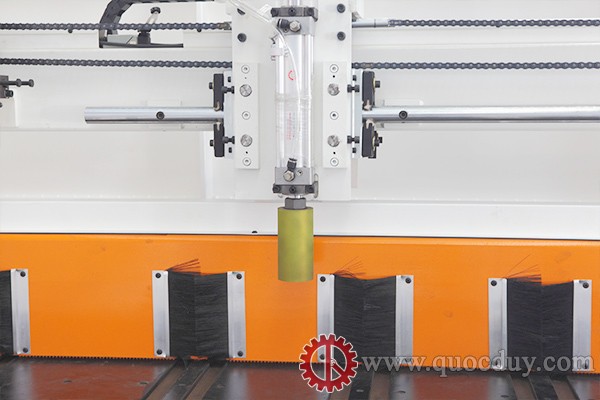

Side aligning device

Fix cutting panel width side, control panels not move or shake when sawing, ensure width sawing precision. Pressure can be adjusted according to difference thickness, weight and material, ensure the precision of sawing dimension.

Main steel frame

Main surface bending by 22mm thick steel, adopting advanced CO2 gas shielded arc welding technology, ensure frame non-deformation, high efficiency and stable quality.

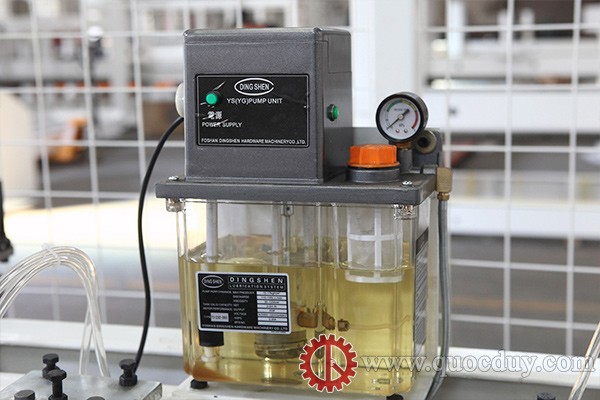

Lubricating system

Auto lubricating for machine body, very convenient, can prolong the machine’s service life and keep good accuracy

Saw blades

1). Two saw blades ensure cutting precision.

2). Main saw blades 16HP, max cutting thickness: 100mm.

3). Saw blades gears: Germany SKF;

4). Sawing motor: TAIWAN SANYE;

Saw carrier

1). Driven by imported TAIWAN FENGMAO high-precision rack & pinion, stable movement, ensure cutting precision.

2). Saw carrier pull back position automatically controlled base on next cutting length, Which reduce unused moving time and greatly improve efficiency.

3). Max cutting speed reach to 100m/min.

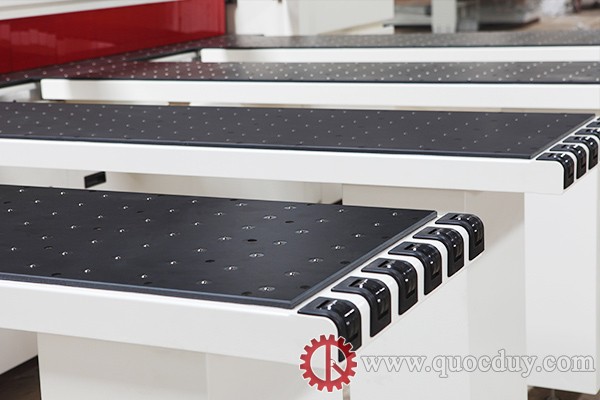

Loading system

Air floating loading table,avoiding board scratching and assuring smoother board movement, suit for heavy and big type wood panel.

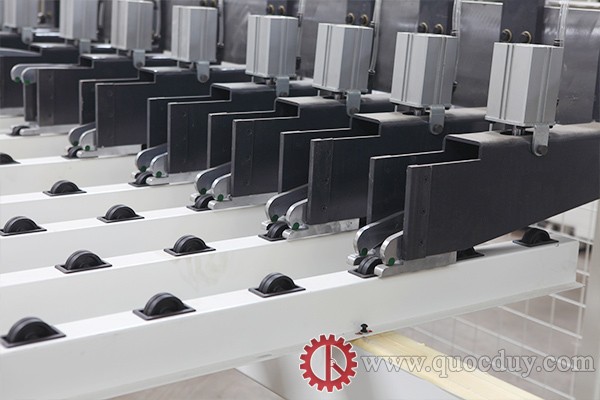

Feeding gripper

Equip 7pcs pneumatic holding gripers, can gripe the panel steadily, highly reduce labor intensity, and greatly improve production efficiency, Min holding panel size 45mm.

Plank

Finished product
