Door Lock - Hinge Drilling Machine

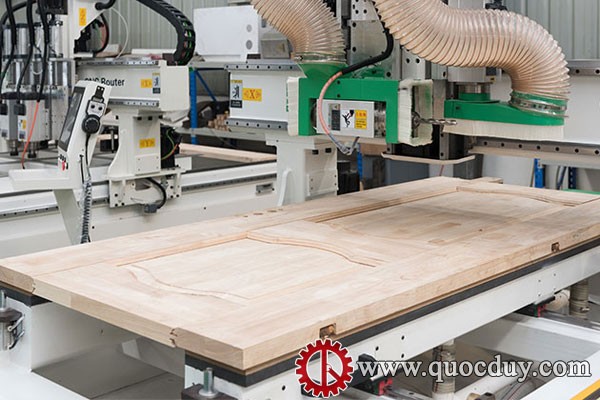

CNC ROUTER FOR DOOR LOCK MAKING MACHINE

Cnc router for door lock making machine can process the door cap, the door core, the door sill, the middle ridge parts. High processing efficiency and high precision.

Code
SM-5.2-1325
Origin
Semac - Quoc Duy
WARRANTEE
12 months
Price
Call

CNC ROUTER FOR DOOR LOCK MAKING MACHINE

Model: : SM-5.2-1325

SM-5.2-1325-may-khoan-o-khoa-ban-le-cua-cnc
Feature

- Solid wood assembly doors, solid wood cabinet doors, solid wood wardrobe doors, solid wood frame cabinets, solid wood retaining walls.

- It adopts high-end CNC system, which is easy to operate and can process various styles of combined shapes and styles according to design requirements.

- A lot of functions, can process the door cap, the door core, the door sill, the middle ridge parts.

- High processing efficiency and high precision.

- Economical and practical, low energy consumption, labor saving, multi-function, high cost performance and so on.

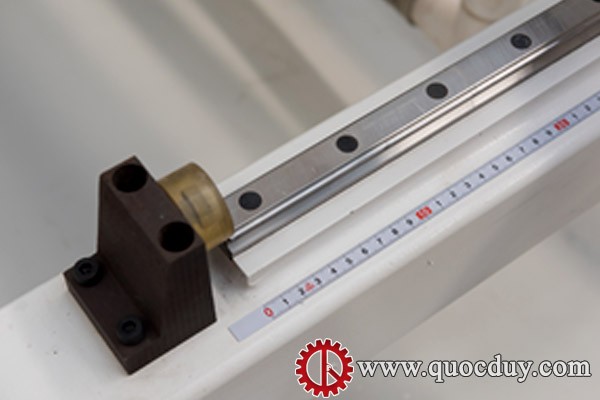

Positioning scale

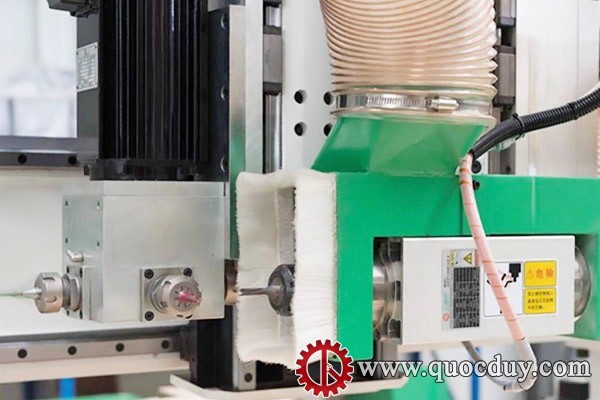

High-power dual output electric spindle

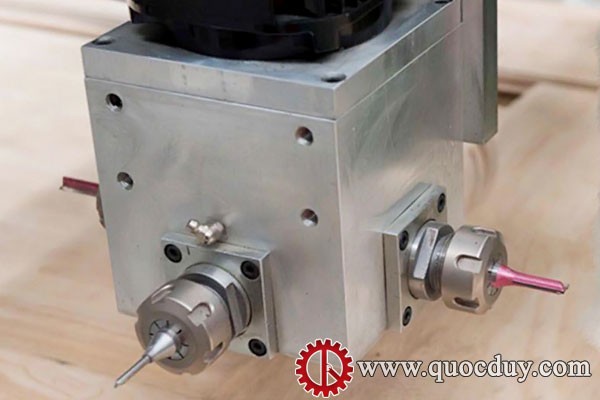

High precision four milling head

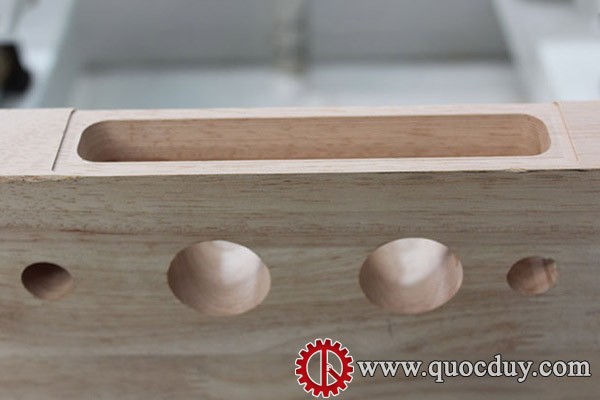

Processing hinge hole
Specification
Door width
: 600-1100mm
Door length
: 1800-2440mm
Door thickness
: 20-60mm
Moving speed
: 60m/min
1# Lock hole motor 1#
: 6 KW
2# Lock hole motor 2#
: 6 KW
Hinge hole motor
: 2.2KW
Diameter of dust collecting tube
: 150mm
Pressure
: 0.6MPA
Net weight
: 3000Kg
Power
: 21KW
Overall size
: 3500×2000×2400mm
