Machine Components
- Control system TAIWAN JK - Schneider Electric Components - Lead screw – Z axis, Taiwan - Driver MAXSINE - Inveter DELIXI - Rack – X,Y . Axis
Specifications
X-axis stroke	: 1300 mm
Y axis stroke	: 2800 mm
Z axis stroke	: 200 mm
Spindle capacity	: 9 kw
Motor drilling	: 1.7 kw
Number of tool trays	: 12 (Replacing knives and plates)
Spindle speed	: 1200 rpm
Dimensions of the desk	: 1220 x 2440 x 200 mm
Code	: G code
Accuracy	: ±0.05 mm
Vacuum motor	: 7.5 kw, 250 m³/h
Working voltage	: 380V, 50Hz
AUTOMATIC PRINCIPLE LEARNING SYSTEM

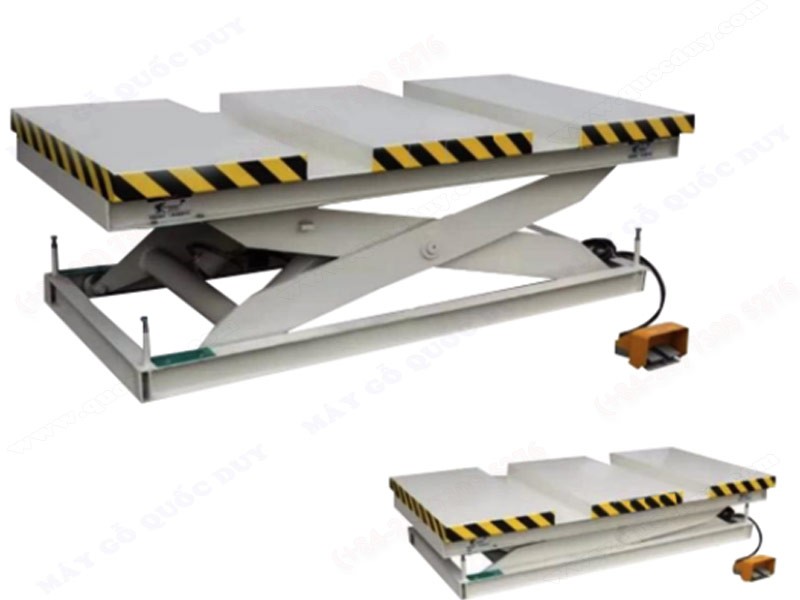

HYDRAULIC LOOKING TABLE
Maximum load	: 2 tons
Maximum lifting height	: 1200mm
Hydraulic pump motor	: 2HP
Machine size	: 2200 × 1000 × 500
Weight	: 800 kg
HYDRAULIC LOOKING TABLE
Feeding width	: 1300mm
Feeding length	: 2500mm
Workpiece weight	: 50 Kg

CNC ROUTER MACHINE WITH BORING UNIT AUTOLOAD

CNC ROUTER MACHINE WITH BORING UNIT AUTOLOAD

Model: SMYM 1325R1BD AL
