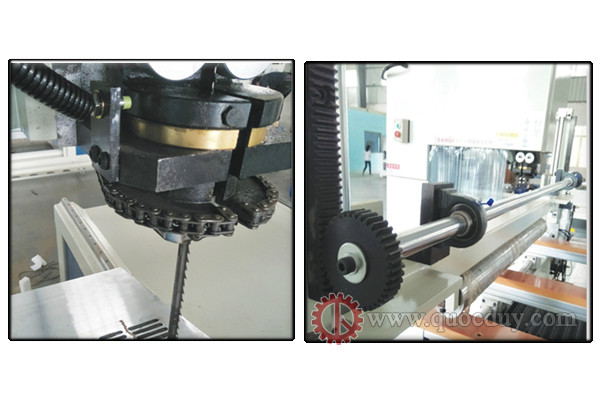

COMPUTER BANDSAW

production line
- INDUSTRIAL WOODEN PLANKS SYSTEM
  - Small production line
  - Nesting line
  - Cabinet Line
- SYSTEM MAKE CHAIR
  - Shaping Stage
  - Tenoner Stage
  - Link building Stage
  - Leg angle chair Stage
  - Fisnish Stage
- DOOR MAKING SYSTEM
  - Công đoạn làm khung bao
  - Công đoạn làm cánh cửa
  - Công đoạn làm khung xương
- FINGER JOINT SYSTEM
- LOG MULTI RIP SAW SYSTEM
- PAPER LAMINATING MACHINE
WOODWORKING MACHINE
- CNC MACHINE
  - CNC Nesting Machining
  - Machine router CNC
  - CNC DRILLING MACHINE
  - Machine tenoner CNC
- SAWING MACHINE
  - Straight line ripsaw
  - Sliding table saw
  - Panel saw
  - Cut off saw
  - Four side saw
  - Band saw
  - Horizontal band saw
  - Zig saw
  - Band saw CNC
  - Log saw
  - Radial arm saw
  - Combined machine
  - Double End Saw
  - Máy cắt tạo bọ eke ghế
- EDGE BANDING MACHINE
  - Edge banding machine
  - Automatic edge banding machine
  - Postforming machine
  - Inclined edge banding
- DRILLING MACHINE
  - Multi horizontal drilling machine
  - Multi vertical drilling machine
  - Máy khoan ghế
  - Straight line boring machine
  - Door Lock - Hinge Drilling Machine
  - Máy khoan 2 phương
  - Máy khoan 6 mặt
  - Máy khoan 2 đầu
- PLANER MACHINE
  - Double side planer
  - 4 side planer
  - Hand jointer
  - Automatic planer
  - Seat planer
- SANDING MACHINE
  - Conveyors sanding
  - Round sander
  - Irregular curve sanding
  - Edge sanding
  - Wide belt sanders
  - Lacquered panel sander
  - Milling sanding machine
  - Deformation sanding machine
  - Top-Bottom Sanding Systems
- TENONER MACHINE
  - Hollow chisel mortiser
  - Continuous dovetailer
  - Fully auto louver groovers
  - Oscillating Mortiser
  - Round end tenoner
  - Machine tenoner Oval
- SHAPING MACHINE
  - Copy shaping machine
  - Copy shaping circle machine
  - Spindle shaper machine
- LATHE MACHINE
- ENGRAVING MACHINE
- FINGER JOINT AND CLAMP CARIER
  - Auto finger joint machine
  - Clamp carrier machine
  - High Frequency Press machine
  - Frame assembly machine
- PRESSING MACHINE
  - Hot press equipment
  - Cold press equipment
  - Door Pressing Machine
  - Veneer membrane press
  - Wood bending
  - High frequency press
- GRINDING MACHINE
- VENEER MACHINE
- DOWEL MAKING MACHINE
- POWER FEEDER
- UV COATING MACHINE
- GLUE SPREADER
- WOOD PALLET MAKING MACHINE
- EMBOSSING MACHINE
- WOOD BARKING MACHINE
- DUST COLLECTOR
- AIR COMPRESSOR
- AUXILIARY MACHINE
- Máy cắt bọ eke
- Máy đa chức năng
FINISHING LINE
HARD WARE
- CIRCULAR SAW BLADES
- PCD Diamond Saw Blades
- BORING HEAD
- PLANER KNIFE
- HAND TOOLS
- OTHER
USED MACHINE
- SAWING MACHINE
- SANDING MACHINE
- CNC MACHINE
- EDGE BANDING MACHINE
- SHAPING MACHINE
- FINGER JOINT AND PRESSING MACHINE
- AIR COMPRESSOR
- VENEER MACHINE
- SYSTEM LEATHER MACHINE
- PLASTIC INJECTION MACHINE
- OTHER MACHINE

Specifications
Model	SDJ-1500	SDJ-2000
Number of universal driving CNC shafts	03	03
Saw blade specification	5400x 16x0.8 mm	5340x16x0.8 mm
Saw wheel diameter	760 mm	760 mm
Saw blade rotation angle	± 90^o	± 90^o
Spondle power	7.5 kw	7.5kw
Max.working speed	0-20 m/phút	0-20 m/phút
Max.retraction speed	40 m/phút	40 m/phút
Working height	150 mm	150 mm
X-axis servo motor	2.0 kw	2.0kw
Y-axis servo motor	1.0 kw	1.0kw
Z-axis servo motor	0.4 kw x 2	0.4kw x 2
Max.working size	1500 x 1250 mm	2000 x 1250mm
Minimum turning radius	R= 60 mm	R= 60 mm
Working air pressure	100 mm x 2	100 mm x 2
Dust suction inlet	6 kg/cm³	6 kg/cm³
Electrical cubicle sizes	1050x550x1800 mm	1050x550x1800 mm
Machine head sizes	1000x900x2500 mm	1000x900x2500 mm
Machine sizes	4000x2200x1700 mm	5000x2200x1700 mm
