Round end tenoner

Double-end Tenon Machine

Code
BY-813
Origin
Semac - Quoc Duy
WARRANTEE
12 months
Price
Call

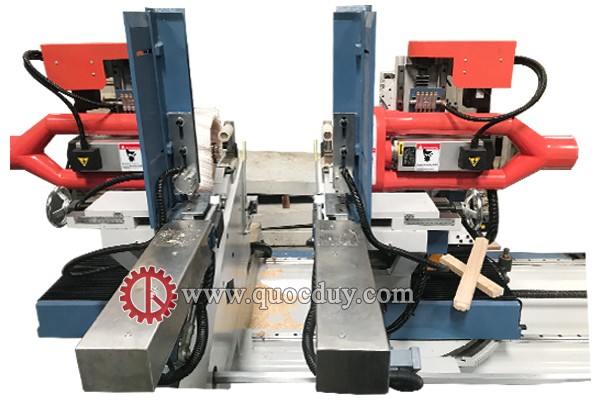

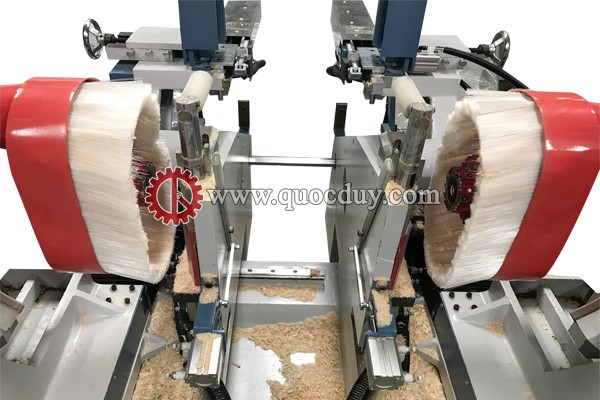

DOUBLE-END TENON MACHINE

Model: BY-813

may-lam-mong-duong-2-dau-by-813
Features

High efficiency : It adopts structures of stock bin type with continuous automatic feeding and automatic blanking to reduce feeding time of manual operation. It also uses the servo system with high responsiveness, higher accuracy and faster speed, which can produce 300-500 products hour.

Convenient : It uses the touch screen operation with simple and clear interface and digital input of fill - to - empty mode. It also uses toothed disc of sector shape to adjust the angle and eliminates the cumbersome process that needs adjustment in all direction after adjusting the angle, making the adjustment of the machine convenient and fast.

Stability: The body adopts a hollow tubular structure with high stability, which eliminates stress through tempering to ensure the body's durable stability with no deformation. The Y axis is lightweight to reduce inertia and improve the durability of moving parts. The automatic lubrication system is used to reduce the influence of wood ash on the machine and ensure the smooth and stable operation of the machine

Economy : The servo system with good stability and control system are chosen. Each moving parts are imported parts are imported parts to ensure good service performance and ensure that it is not easy to fail and improve the machine utilization rate

Specifications
Length of processing material
: 220-2000mm
Width of processing material
: 20-150mm
Thickness of processing material
: 12-50mm
Machining maximum tenon
: 8-50mm
Horizontal adjustable angle
: +50, -200
Vertical adjustable angle
: +350, -50
Spindle motor
: 5.5 Kw x 2
Length regulating motor
: 400 W
Total power
: 16,5 Kw
Spindle speed
: 9000 rpm
Working pressure
: 0.4-0.6 Mpa
Machine size ( L x W x H )
: 3800 x 1400 x 1600 mm
Machine weight
 : 1680 Kg
Video
