Features
Heavy-duty double table structure design, mobile vacuum table. Double workbench can be handled alternately or combined. Automatic knife change. A total of 16 knives can be used for processing. The tool head can be switched for machining at any time, saving time for changing tools and improving the randomness of machining. Achieve multiple processing functions such as engraving, drilling, cutting, chamfering, routing, etc.
Specification
Working size	: 3060 x 1800 mm
Table working	: 2
Axis travel
Axis X	: 2200 mm
Axis Y1/Y2	: 1800 mm
Axis Z	: 300 mm
Max speed spindle
Axis X	: 60 rpm
Axis Y1/Y2	: 50 rpm
Axis Z	: 30 rpm
Speed working	: 15 rpm
Motor spindle	: 12 Kw x 2
Knife tray	: 8 piece x 2
Motor spindle saw	: 5.5kw
Speed spindle saw	: 6000rpm
Diameter blade saw	: 280 x 3.0 x 40mm
Saw blade angle	: 0°-90°
Speed spindle	: 24000 rpm
Total power	: 52kw

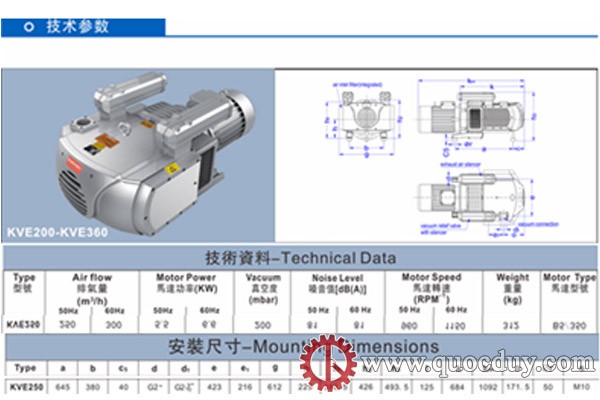

Vacuum	: 7.5 Hp x 2 piece
Diameter of vacuum tube
Main pipe	: 150 mm
Auxiliary pipe	: 200 mm
air pressure	: 0.5 – 0.9 Mpa (max 1.0 Mpa)
Voltage	: 380V/50Hz

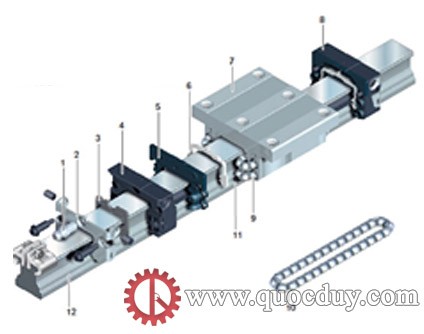

Sliding rail system	: Taiwan
Machine size	: 11000 x 3600 x 3100 mm
Machine weight	: 15T
