Feature

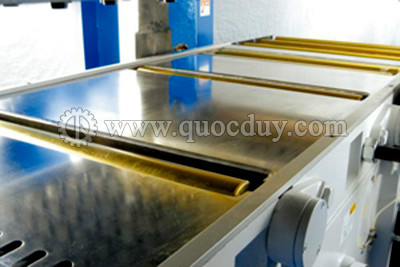

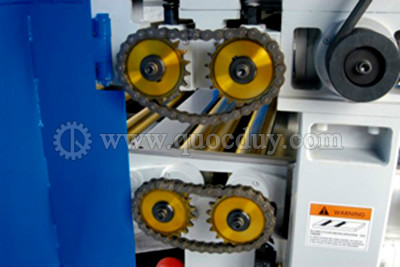

• The four table rollers provide superior feeding performance • Standard Y-delta motor starting • Quick belt change for bottom cutterhead • Automatic lubrication for feeding chain • Automatic lubricator provides convenient lubrication to caterpillar chain slideways • An air wrench is applied for removing or installing knives and saves knife change time. • The upper and lower cutter heads are spiral cutter heads • The table surface is hard chrome plated and precision ground for extremely smooth feeding and maximum wear resistance • The dovetailed slideways on the table elevation assure outstanding rigidity and stability • Sectional infeed rollers • High speed feed up to 40 M/min
Specifications
Maximum Width Of Cut	635mm
Maximum Thickness Of Cut	200mm
Minmum Thickness Of Cut	10mm
Minmum Lenght Of Cut	310mm
Knife Nos. On Top Cutterhead	96pcs
Knife Nos. On Bottom Cutterhead	96pcs
Knife Sizes	TCT 30x12x1.5mm
CutterHead Speed	5000RPM
Variable Feed Speed-inverter	8-40m/min
Dust Hood Outlet Diameter	15mm x 2
Table Surface Area	27"x103"
Top Cutterhead Drive Motor	25HP
Buttom Cutterhead Drive Motor	20HP
Feed Drive Motor	5HP
Upper Mechanism Elevation Motor	1/2HP
Machine Dimensions	2750x1145x1720mm
Net Weight	3000kg
Video

HIGH SPEED DOUBLE SIDE PLANER 0.6M

HIGH SPEED DOUBLE SIDE PLANER 0.6M

Model: HS-635ARD

MÁY BÀO 2 MẶT TỰ ĐỘNG

AUTO DOUBLE SURFACE PLANNER
