Features

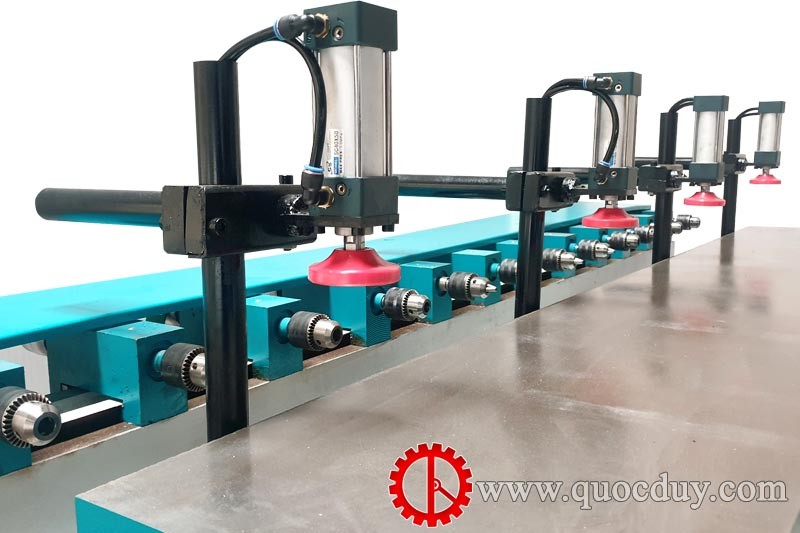

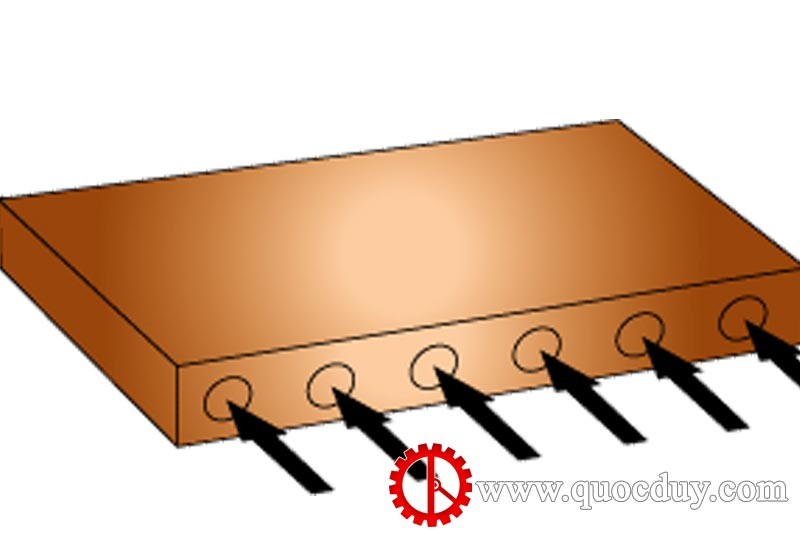

Possessing 12 effective drilling and machining heads at the same time Designed with 4 pneumatic clamps, helping to keep the workpiece in place during the machining process Mechanical button control panel, simple operation Robust machine frame, stable operation, precision machining Performs shake drilling to create negative mortise with high capacity
Specifications
Table size	: 2000 x 360 mm
Working table adjustment distance up and down	: 60 mm
Number of spindle	: 12
Spindle speed	: 3700 rpm
Total capacity	: 7.5 HP
Preumatic	: 0.6 ~ 0.7 Mpa
Gross weight	: 1630 kg
Net weight	: 900 kg
Machine size	: 2050 x 900 x 1100 mm
Video

HORIZONTAL MULTIPLE SPINDLE BORING MACHINE

HORIZONTAL MULTIPLE SPINDLE BORING MACHINE

Model: SMBL 260-12
