FEATURES

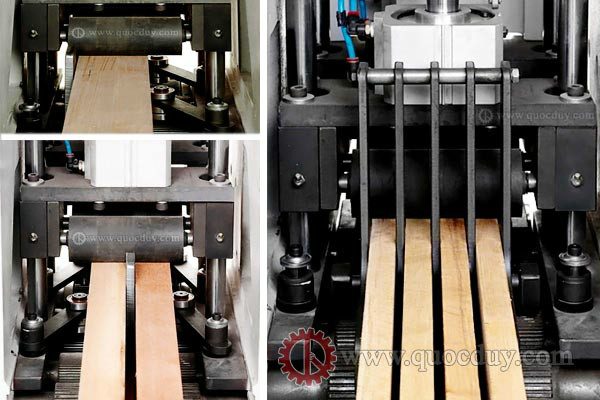

- Reduced saw path loss for saving wood material and increasing profit. - Saw frame speed up to 480 times per minute! - Maximum feed speed up to 1.2M per minute! - Saw path loss 1.25~1.4mm for reducing wood material loss while increasing profit. - Suitable for multiple slicing at a time. Suitable for production of composite parquet, venetian blind, air-tight window, pencil, door and guitar, ect.
SPECIFICATIONS
Feed height	: 200 mm
Cutting motor	: 15 HP
Blower motor	: 2 HP
Feed motor	: 0.3 – 1.2 m/min
Rotation speeds	: 520 rpm
Cutting height	: 60-200 mm
Cutting width	: 160 mm
Blade length	: 500 mm
Kerf loss	: 1.1 ~ 1.2~1.4 mm/min
Cutting frame	: 210 mm
Minimum wood length	: 300 mm
Wood height tolerance	: + - 0.5 mm
Minimum veneer thickness	: 2 mm
Compressed air required	: 6 bar
Dust collecting hole	: 5 x Ø100 mm
Number of saw blades	: 25 pcs
Digital display	: 10.4 inch
Net weight	: 2600 kg
Gross weight	: 3000 kg
Machine size	: 3400x1300x2300 mm
Packing size	: 3600x1500x2150 mm
Video

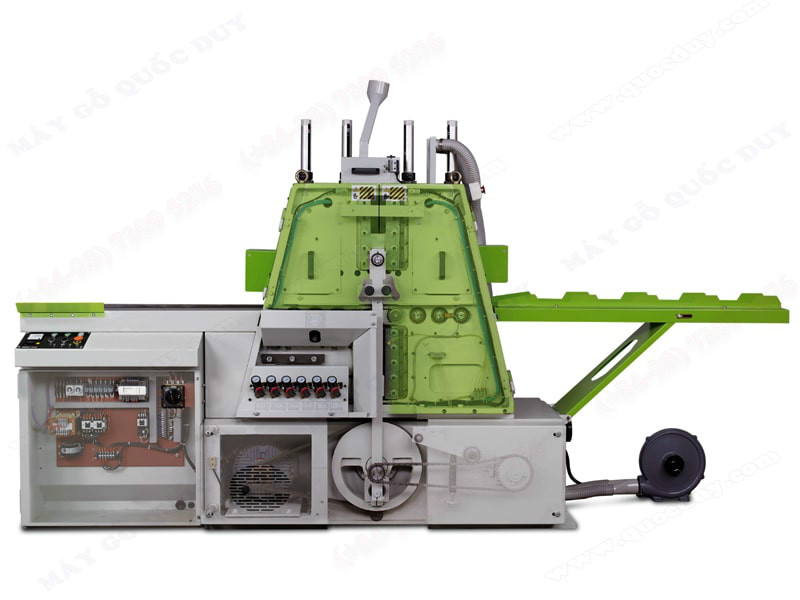

THIN CUTTING FRAME SAW

THIN CUTTING FRAME SAW

Model : MAC 15
