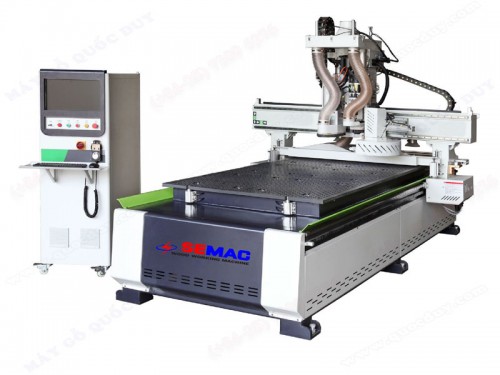

CNC DRILLING MACHINE CHANGE AUTOMATICALLY
CNC DRILLING MACHINE CHANGE AUTOMATICALLY
Model: : SMBL-1325R1B
|
Feature
|
|
|
The cnc nesting machine combines the billet folding unit to push the workpiece out

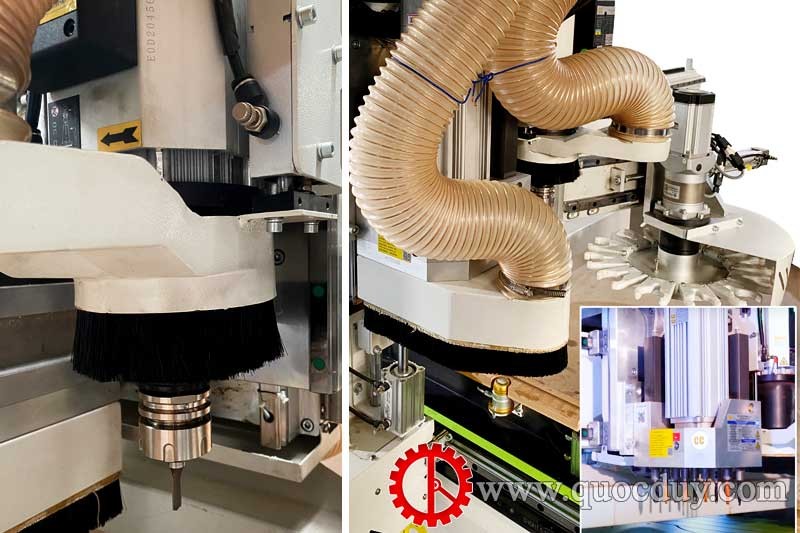

The machine includes 1 router head - 1 drill assembly that performs the functions of cutting, drilling, milling, grooving, pano...
Solidly designed machine frame, 7.5kw . vacuum pump

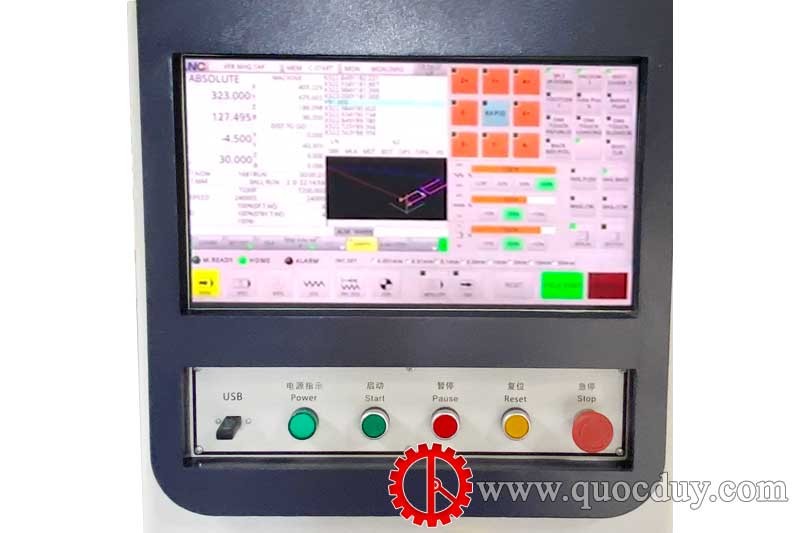

Control system : System BAOYUAN - Taiwan
Boring unit : CHANGCHUAN 9 axis, L type
DRIVER XINJIE
Slider: Taiwan
CD Delixi
Contactor Schneider
|
|
|
Specifications
|
|
|
X – axis travel
|
: 1300 mm
|
|
Y – axis travel
|
: 2500 mm
|
|
Z – axis travel
|
: 180 mm
|
|
Spindle motor
|
: 9 kw
|
|
Drill motor
|
: 1.7 kw
|
|
Spindle speed
|
: 24000 rpm
|
|
X – axis speed travel
|
: 20 m/min
|
|
Y – axis speed travel
|
: 20 m/min
|
|
Z – axis speed travel
|
: 20 m/min
|
|
Voltage
|
: 380v/50hz
|
|
Servo motor
|
: Xinjie 1.5 kw
|
|
Vacuum pump motor
|
: 7.5 kw
|
|
Total power
|
: 20.5 kw
|
|
Netweight
|
: 3000 kgs
|
|
Origin
|
: Semac – Quoc Duy
|
