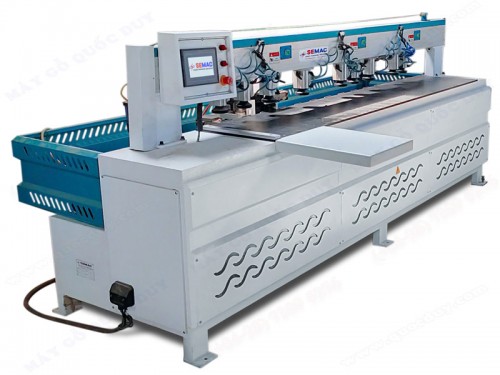

MULTI-FUNCTION SIDE HOLE DRILLING MACHINE

MULTI-FUNCTION SIDE HOLE DRILLING MACHINE
  • :SM-2400
  • :Semac - Quoc Duy
  • :12 months
  • :Call
  • :

MULTI-FUNCTION SIDE HOLE DRILLING MACHINE

Model: SM-2400

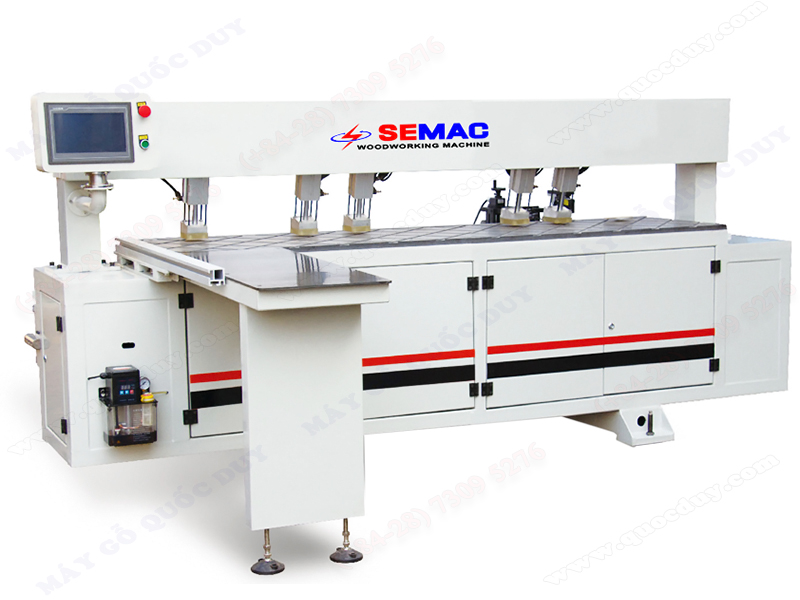

may-khoan-cnc-sm-2400
Main configuration

 1.Taiwan high precision guide rail and screw rack

 2.Japan servo drive system and planetary reducer

 3.Imported components, such as France Schneider electronics, stable performance

Feature

 - The machine is automatic multi-function side drilling machine, through software optimization, automatically drill, slot, mortise, hinge hole, door locks and other diversified shaped hole cutting graphics.

 - Machine control interface design humanization, can scan code processing, easy to operate, fast, high efficiency.

 - Imported components, such as France Schneider electric components, Japanese Panasonnic servo motor and planetary reducer, stable performance The body through FEA finite element analysis and annealing treat, body stability and not deformation.

Specificatios
Working thickness
10-60 mm
Working depth
80 mm
Working length
2300 mm
Drive type
X/Y Axis rack and pinion, Z axis screw
Max. Travelling speed
50 m/min
Max. Working speed
30 m/min
Driving motor
3 PANASONIC Servo motor
voltage
AC380/3PH/50HZ
Control system
Nc studio control system
Spindle power
3.5kw
 Spindle speed
0-18000 rpm
Run command
G Code
