FOUR SIDED 6-AXIS PLANER MACHINE

  • :SMVK-623D
  • :SEMAC - Quoc Duy
  • :12 Months
  • :Call
  • :

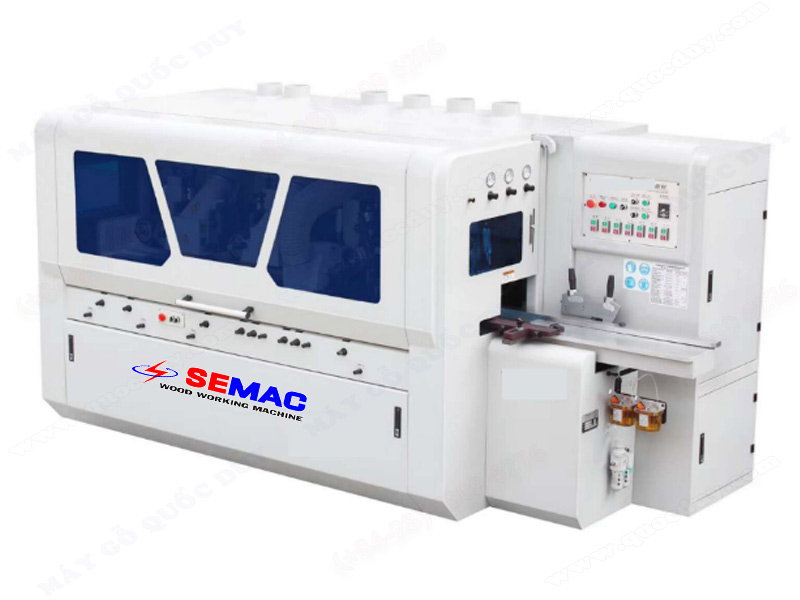

FOUR SIDED 6-AXIS PLANER MACHINE

Model: SMVK 623D

Máy bào 4 mặt 6 trục tự động tốc độ cao | Quốc Duy

Specifications
Working width
: 25-230 mm
Working thickness
: 8-160 mm
Working table length
: 580/300 mm
Feeding speed
: 5-40 m/min
Main shaft diameter
: Ø40mm
Main spindle speed
: 7000 r/min
Pneumatic source pressure
: 0.6 mpa
Overall power
: 54.75 kw
Feeding power
: 4 kw
Right shaft power
: 7.5 kw
Diameter Right shaft
: Ø125- Ø160mm
Left shaft power
: 7.5 kw
Diameter Left shaft
: Ø125- Ø160mm
1st lower shaft power
: 7.5 kw
Diameter 1st lower shaft
: Ø125
1st upper shaft power
: 11 kw
Diameter 1st upper shaft
: Ø125- Ø160mm
2nd lower shaft power
: 7.5 kw
Diameter 2nd lower shaft
: Ø125- Ø160mm
2nd upper shaft power
: 11 kw
Diameter 2nd upper shaft
: Ø125- Ø180mm
Dust collector diameter
: Ø 150mm*6
Machine size
: 3680 x 1660 x 1800mm
Net weight
: 4000 kg
