WIDE BELT SANDERS 4 CAPACITY
WIDE BELT SANDERS 4 CAPACITY

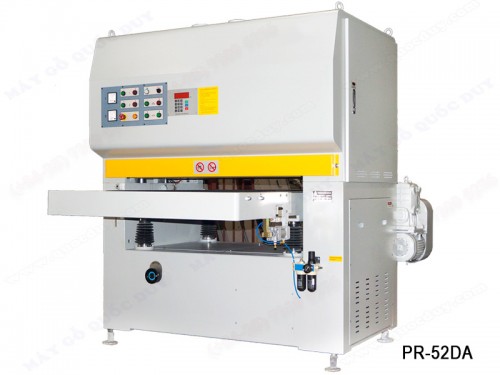

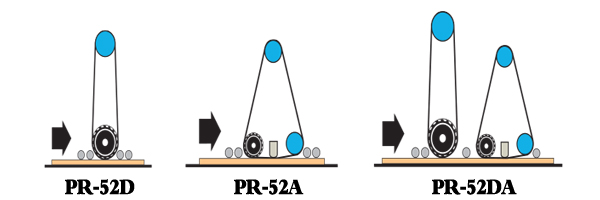

Model: PR-52D/PR-52A/PR-52DA
| Features | |||
|
- PANEL CLEANING BRUSH ROLLER
Built at outfeed end of the machine, this panel cleaning brush roller clean powder on the sanded panel. - FEED CONTROLLED BY FREQUENCY INVERTER
Used for adjusting the sanding belt speed. (Use together with hollow shaft speed reducer) - VARIABLE SPEED UNIT
The conveyor belt speed is controlled by a variable speed unit. Feed speed can be varied as desired to suit all types of workpiece material,assuring superior sanding quality. - SANDING BELT QUICK CHANGE DEVICE
The sanding belt is changed quickly for time saving and convenience - CONVEYOR BELT TRACKING CONTROL
The conveyor belt tracking is pneumatically controlled to effectively prevent out-of-track |
|||
| Specifications | |||
 |
|||
|
Working width
|
1270mm
|
1270mm
|
1270mm
|
|
Working height
|
125 mm
|
125 mm
|
150mm
|
|
Main motor standard
|
25 HP
|
25 HP
|
20, 20HP
|
|
Feed motor
|
3HP
|
3HP
|
3HP
|
|
Table hoist motor
|
1/2HP
|
1/2HP
|
1/2HP
|
|
Feed speeds (Variable)
|
6-23 M/min
|
6-23 M/min
|
6-23 M/min
|
|
Sanding belt size
|
1320x 1905 mm
|
1320x 1905 mm
|
1320x 1905 mm
|
|
Compressed air required
|
5 kg/cm²
|
5 kg/cm²
|
5 kg/cm²
|
|
Exhaust volume requirement
|
3500 M³/Hr
|
3500 M³/Hr
|
6860 M³/Hr
|
|
Net weight
|
1800 kg
|
1800 kg
|
2500kg
|
|
Gross weight
|
2050 kg
|
2050 kg
|
3000kg
|
|
Dimensions
|
1905x1778x1930 mm
|
1905x1778x1930 mm
|
1930x2083x1956 mm
|
|
Packing size
|
2057x1930x2108 mm
|
2057x1930x2108 mm
|
2032x1854x2159 mm
|
