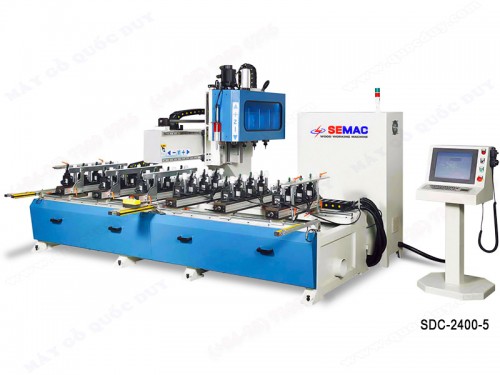

2400MM CNC SEAT MORTISING MACHINE
2400MM CNC SEAT MORTISING MACHINE
Model: SDC-2400-5
|
Specifications
|
|
|
Max. X axis stroke
|
2400mm
|
|
Max.Y axis stroke
|
500mm
|
|
Max. Z axis stroke
|
200mm
|
|
Wheelbase of cutter heads
|
200mm
|
|
Spindle speed
|
18000 r/min
|
|
Spindle power
|
2.2kw x5
|
|
Servo motor
|
1.0kw x 3
|
|
Dust suction inlet
|
Ø150mm x 2 pcs
|
|
Machine size
|
4400 x 2100 x 2200mm
|
|
