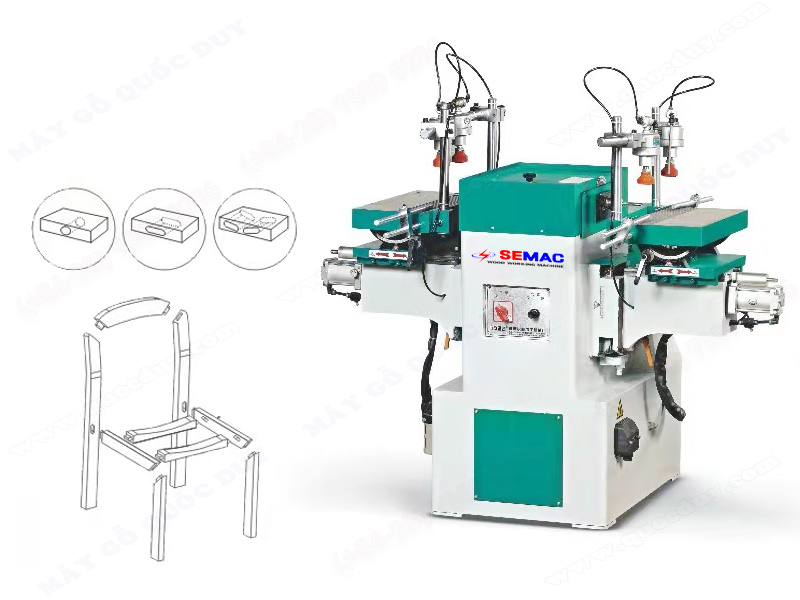

HORIZONTAL DOUBLE END MORTISING MACHINE
HORIZONTAL DOUBLE END MORTISING MACHINE
Model: SMMS 130
|
Specifications
|
|
|
Max.mortise width
|
: 120 mm
|
|
Max.mortise depth
|
: 60 mm
|
|
The tilted angle of working table
|
: ±20o
|
|
Working table lift stroke
|
: 80 mm
|
|
Spindle speed
|
: 10000 rpm
|
|
Motor
|
: 2.2 Kw
|
|
Machine size
|
: 1500 x 880 x 1230 mm
|
|
Net weight
|
: 500 kg
|
|
