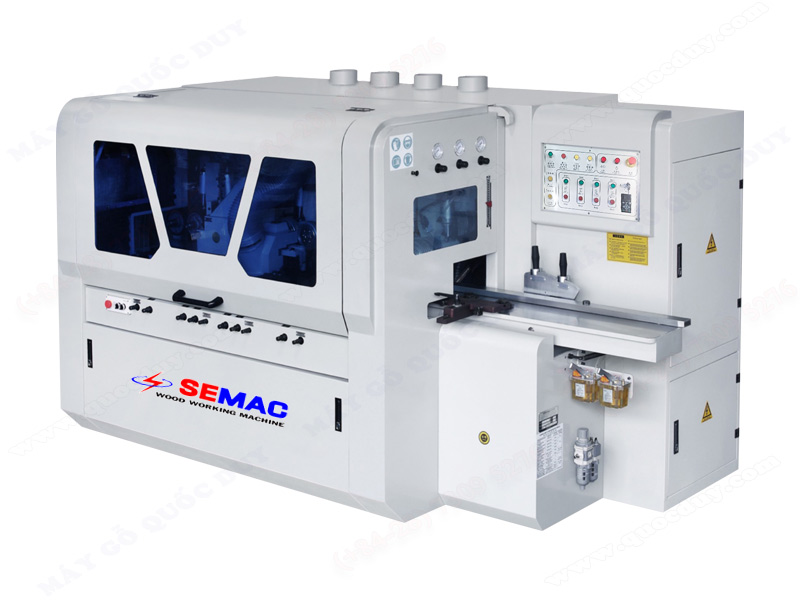

4 SIDE PLANER 4 SPINDLE MACHINE
4 SIDE PLANER 4 SPINDLE MACHINE
Model: SMVK B418D
|
Specifications
|
|
|
Working width
|
: 25-180 mm
|
|
Working thickness
|
: 8-130 mm
|
|
Working table length
|
: 580/300 mm
|
|
Feeding speed
|
: 5-40 m/min
|
|
Main shaft diameter
|
: Ø 40 mm
|
|
Main spindle speed
|
: 7000 r/min
|
|
Lower shaft power
|
: 4 kw
|
|
Upper shaft power
|
: 7.5 kw
|
|
Left/Right shaft power
|
: 5.5 kw
|
|
Diameter upper shaft
|
: Ø125- Ø160mm
|
|
Diameter Left/Right shaft
|
: Ø110- Ø170mm
|
|
Diameter lower shaft
|
: Ø125 -160 mm
|
|
Feeding power
|
: 3 kw
|
|
Table hoist motor
|
: 0.75 kw
|
|
Overall power
|
: 24.25kw
|
|
Pneumatic source pressure
|
: 0.6 mpa
|
|
Dust collector diameter
|
: Ø 150mm x 4
|
|
Machine size
|
: 3150 x 1550 x 1800mm
|
|
Net weight
|
: 2700 kg
|
|
