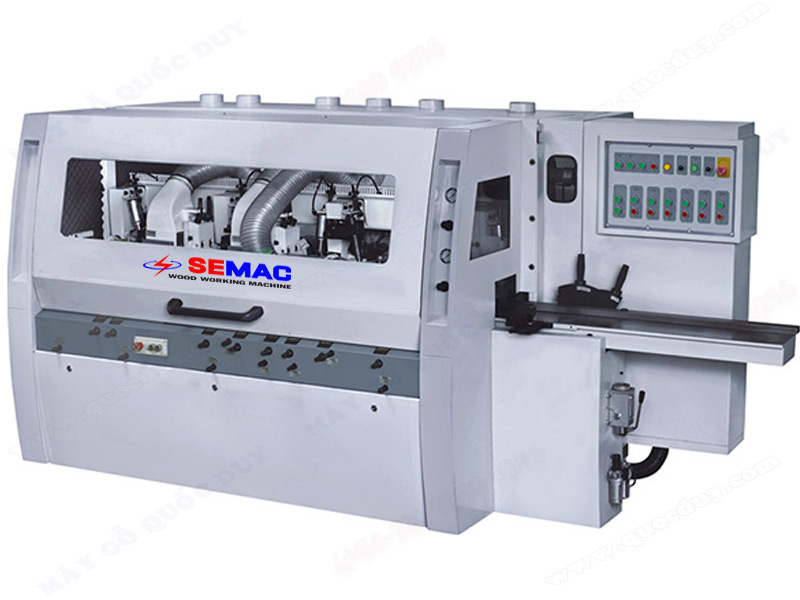

FOUR SIDE MOULDER WOODWORKING MOULDER
- :ZHX-M416A
- :Semac - QuOc Duy
- :12 months
- :Call
- :
 |  |
FOUR SIDE MOULDER WOODWORKING MOULDER
Model: ZHX-M416A
| Specification | |
|
Working Thickness
|
: 8-120mm
|
|
Working Width
|
: 15-160mm
|
|
Operating Platform length
|
: 1800mm
|
|
Feed Speed
|
: 5-25m/min
|
|
Spindle Diameter
|
: ø40mm
|
|
Spindle Speed
|
: 6000r/min
|
|
Gas Source Pressure
|
: 0.6MPa
|
|
Two,Motor Power:
|
|
|
The Ist Bottom Spindle
|
: 4kw/5.5HP
|
|
The Ist Top Spindle
|
: 5.5kw/7HP
|
|
Right Side Spindle
|
: 4kw/5.5HP
|
|
Left Side Spindle
|
: 4kw/5.5HP
|
|
Feed Beam Rise&Fall
|
: 0.75kw/1HP
|
|
Feeding
|
: 3kw/4HP
|
|
Total Motor Power
|
: 21.25kw/40HP
|
|
Three,Knife Diameter:
|
|
|
Right Side Spindle
|
: ø125-ø160mm
|
|
Left Side Spindle
|
: ø125-ø160mm
|
|
The Ist Bottom Spindle
|
: ø125
|
|
The Ist Top Spindle
|
: ø125-ø160mm
|
|
The Second Top Spindle
|
: ø125-ø160mm
|
|
The Second Bottom Spindle
|
: ø125-ø160mm
|
|
Feed Diameter
|
: ø120mm
|
|
Dust Diameter
|
: ø125mm
|
|
Net Weight
|
: 2200 kgs
|
|
Gross Weight
|
: 2280 kgs
|
|
Machine size
|
: 3000*1550*1750mm
|
