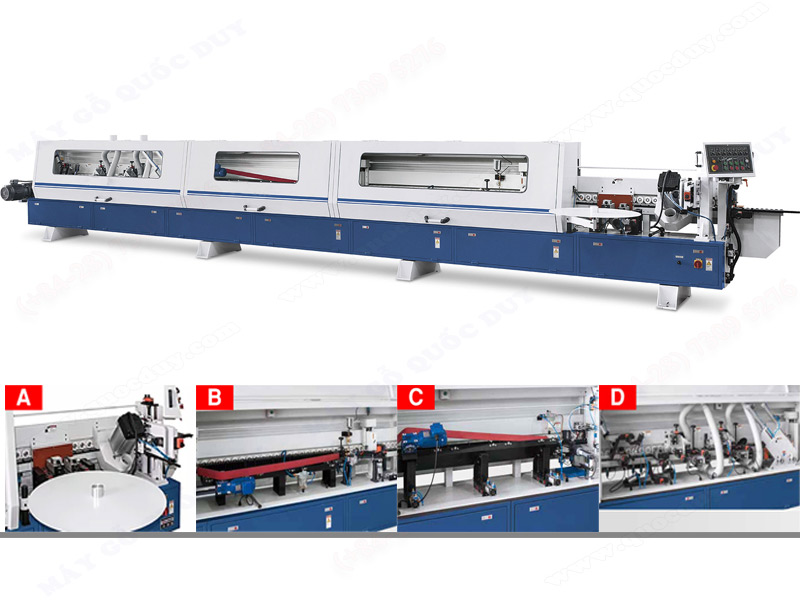

AUTOMATIC EDGE BANDING MACHINE
AUTOMATIC EDGE BANDING MACHINE
Model : ECE- 900K
|
Specifications
|
|
|
Working length
|
: ≥ 160mm
|
|
Working width
|
: ≥ 70mm
|
|
Working thickness range for straight edges
|
: 9 ~ 50 mm
|
|
Working thickness range for partially inclined edges
|
: 15-25mm
|
|
Edge banding tape thickness
|
: 0.4-2mm
|
|
Air pessure
|
: 5-6kg/cm2
|
|
Feeding speed
|
: 5-10m/phút
|
|
Tilting surface forming
|
: 3.75kw
|
|
1st Pre. fine trimming unit
|
: 0.55kw
|
|
2nd Pre. Fine trimming unit
|
: 0.85kw
|
|
Front and rear end cut
|
: 0.35kw x 2
|
|
Top and bottom trimming units (straight)
|
: 0.55kw x 2
|
|
Top and bottom trimming units (inclination)
|
: 0.55kw x 2
|
|
Top and bottom corner rounding trimming units
|
: 0.35kw x 2
|
|
Net weight
|
: 4140 kg
|
|
Machine size
|
: 10000 x 1400 x 1540 mm
|
