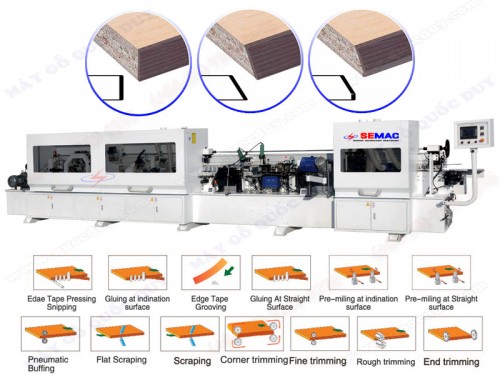

AUTOMATIC STRAIGHT-INCLINED EDGE GLUING MACHINE
AUTOMATIC STRAIGHT-INCLINED EDGE GLUING MACHINE
Model: SMXK-6IJ
Specification | |
Straight milling motor
|
: 1.8 kw x 2
|
Inclined milling motor
|
: 4 kw
|
Heating motor
|
: 0.75 kw x 2
|
Milling motor on – below (Straight)
|
: 1.1 kw x 2
|
Milling motor on – below (Inclined)
|
: 1.1 kw x 2
|
End trimming
|
: 0.75 kw x 2
|
Angled motor
|
: 0.75 kw x 2
|
Polishing motor
|
: 0.37 kw x 2
|
Conveyor motor
|
: 0.37 kw
|
Intergral lifting motor
|
: 0.37 kw
|
Hot air blower motor
|
: 1600 W x 2
|
Min. workpiece width
|
: 200 mm
|
Max. workpiece thickness
|
: 25 mm
|
Machine size
|
: 8300 x 1700 x 1700 mm
|
