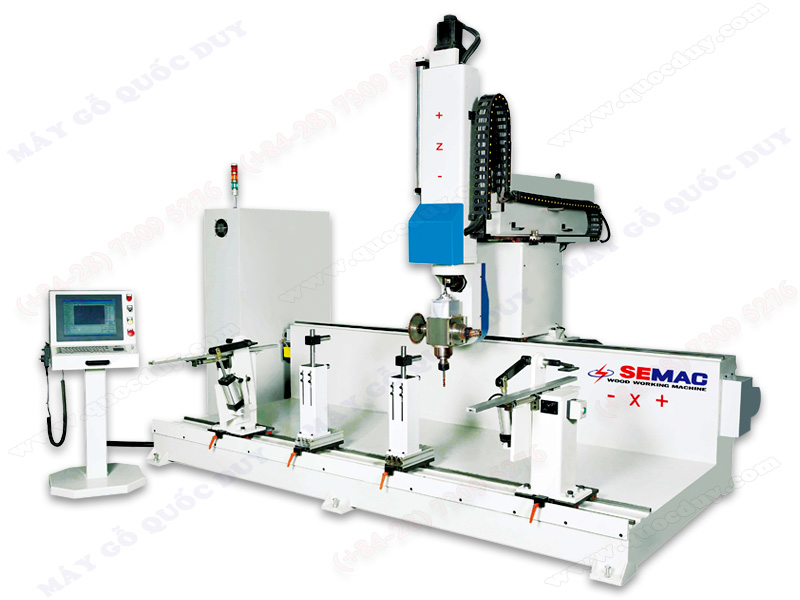

CNC 5 AXIS MACHINE

Model: SSM-2200

Thông số kỹ thuật
The direction of motion  axis	: 5
Spindle speed	: 18000 rpm
Working length	: 2200 mm
X-axis travel	: 2800 mm, 60m/min
Y-axis travel	: 750mm,  35m/min
Z-axis travel	: 750 mm, 35m/min
A-axis travel	: 0-3600, 35m/min
C-axis travel	: 0-3600, 35m/min
Cutting axis	: 1
Drilling axis	: 1
Tapping axis	: 1
Working voltage	: 380V
Working pressure	: 6kg/m2
1 axis motor	: 7.5 KW
2 axis motor	: 2.5 KW
X axis motor	: 3 KW
Y axis motor	: 2 KW
C axis motor	: 0.75 KW
A axis motor	: 0.75 KW
Z axis motor	: 1 KW
Machine size	: 4100*2250*2650 mm
