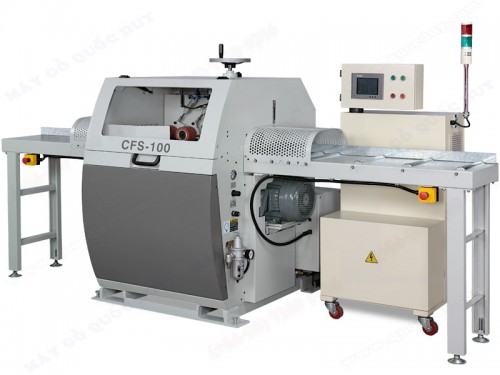

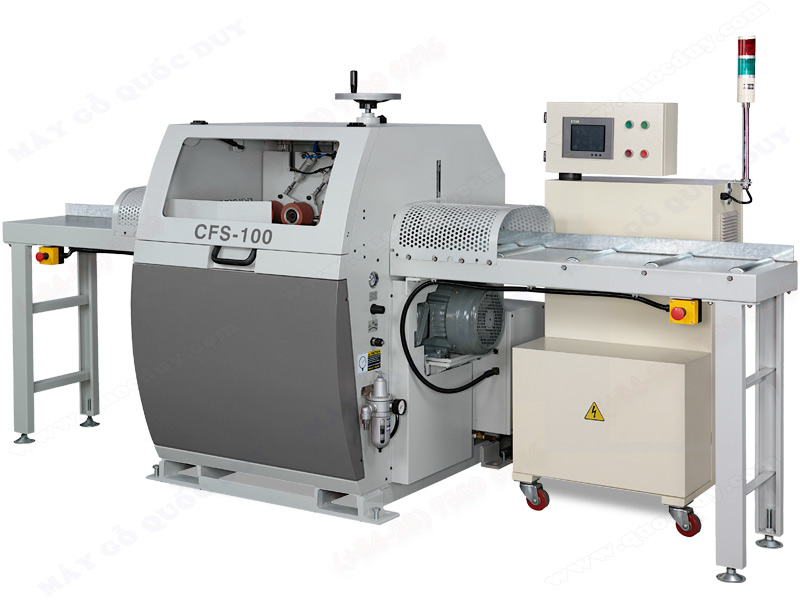

CNC CUT OFF SAW

Model: CFS-100

CFS-100-may-cat-khuyet-tat
Features

- Maximum feed speed is up to 80 M/min.

- Cutting rate up to 80 cuts per minute.

- High cutting accuracy within ±1mm .

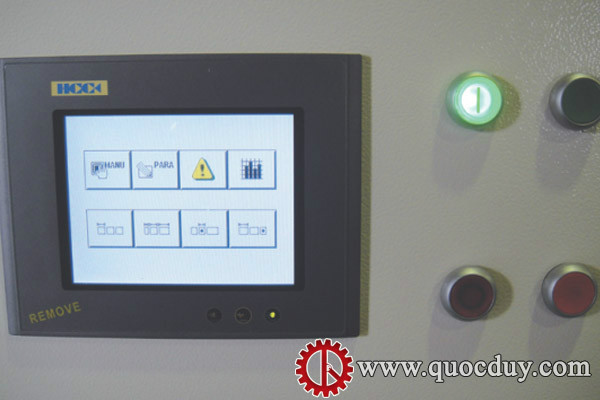

- The control employs a touch screen for easy learning and operation.

- All new machine design features maximum maintenance convenience.

- High quality electric parts provide maximum dependability.

Fix length of cutting mode.
Sequential cutting mode.
*10 sets of cutting sizes memory (for sequential cutting mode only).
Marking lines cutting with double end trimming.
Marking lines cutting mode and fixed length cutting mode.

This function can do the following jobs simultaneously:
a. Defect.
b. Cut the fixed size (A).

c. Cut Finger jointing size without lost (A+X).

Specificatioms
Saw motor
: 10HP
Saw spindle speed
60 HZ
: 3300 r.p.m.
50 HZ
: 3200 r.p.m.
Max. feed speed
: Variable to 80 M/min (240 ft/min)

 Circular saw diameter

: Ø455mm(18")
Saw spindle diameter
: 30mm (1") or 30mm
Minimum distance of marks
: 20mm
Cutting size
: See the diagram of cutting range
Air pressure
for machine
: 5~6 kg/cm
for defect blowing system
: 7~9 kg/cm
