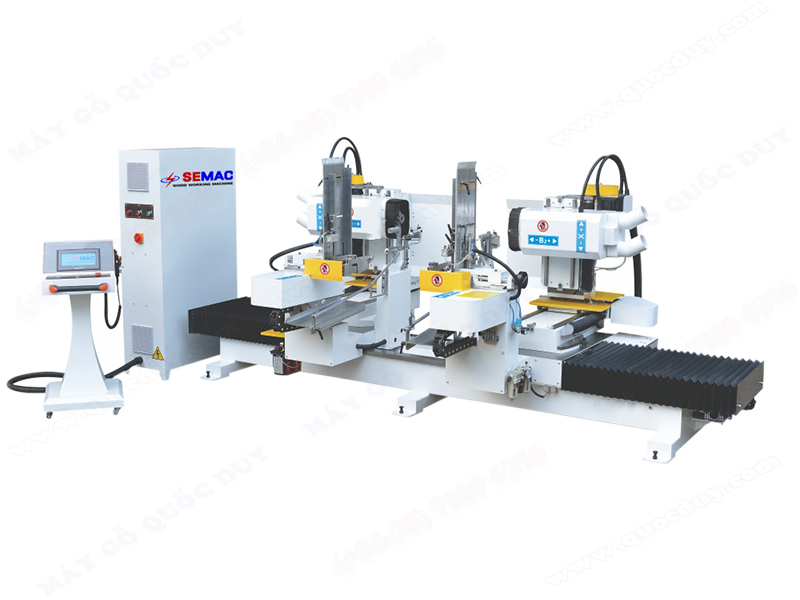

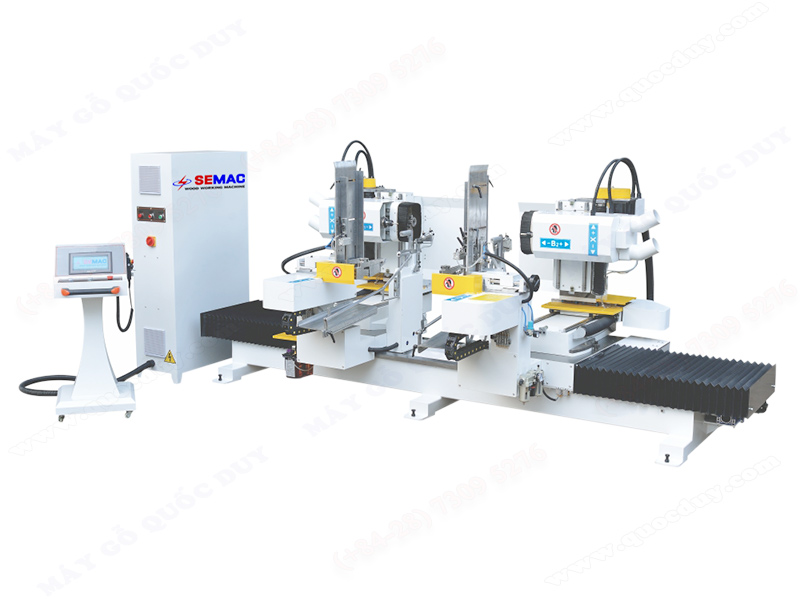

CNC DOUBLE END TENON AUTO FEEDING
Model: SM 2218E
|
Features
|
|
|
- Processing various types of mortise such as round mortise, positive oval mortise, square mortise, oblique mortise, etc.
- Automatic billet feeding and unloading mechanism saves time and labor
- Machining 2 mortise heads at the same time to improve productivity
- Precise mechanical structure makes tenon machining easy, low error, uniform tenon quality
- Easy to use user interface
- Selected components from famous brands
|
|
|
Specifications
|
|
|
Max. machining length
|
: 2150 mm
|
|
Max. working tenon length
|
: 45 mm
|
|
Max. Z-axis stroke
|
: 180 mm
|
|
Air pressure
|
: 6 bar
|
|
Spindle speed
|
: 18000 rpm
|
|
Spindle power
|
: 4.5 kw x 2
|
|
Machine size
|
: 4200 x 2200 x 1700 mm
|
|
Net weight
|
: 2000 kgs
|
|
Chi tiết máy
|
|
|

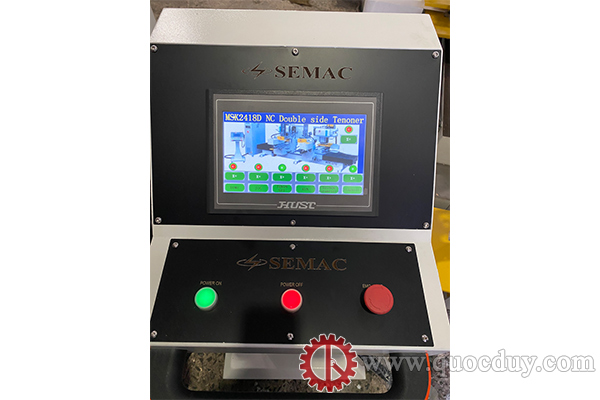

Control system HUST – Taiwan
 |
Airtac cylinder
 |
|

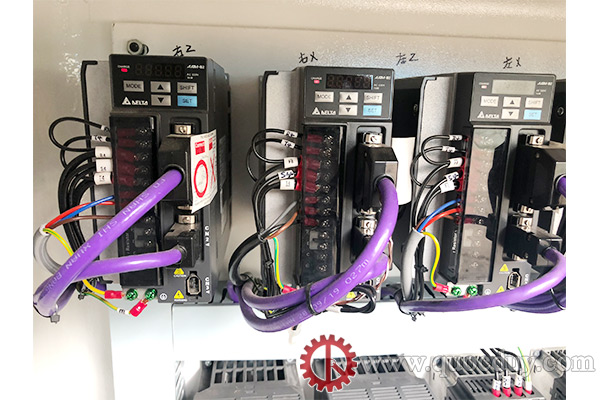

Servo control drive
 |

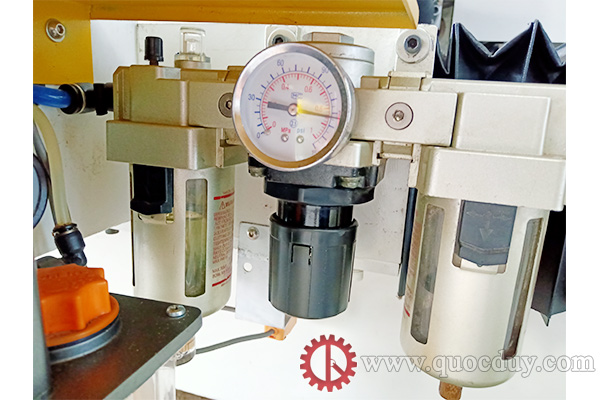

Compressed air filter
 |
|

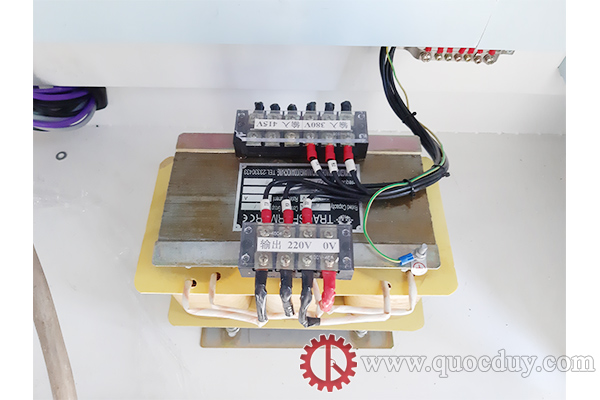

Machine protection transformer
 |

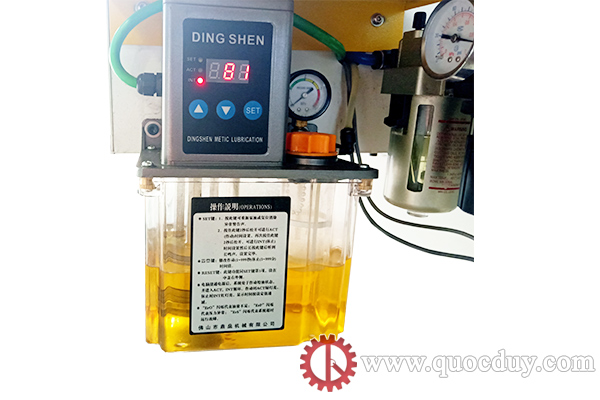

Automatic lubricating oil supply system
 |
|

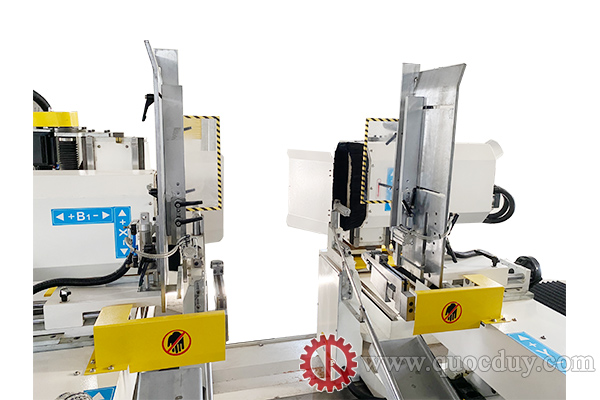

Automatic bar feeding device
 |

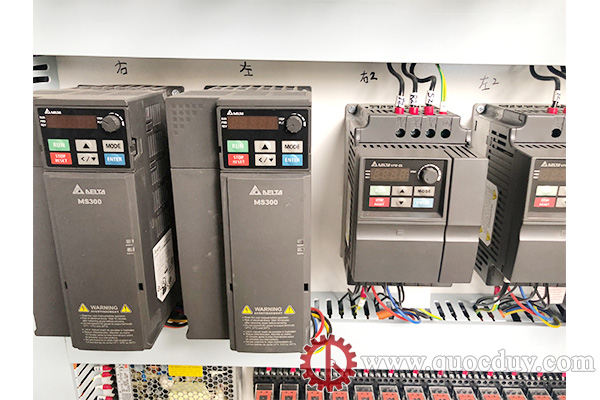

Delta inverter
 |
|

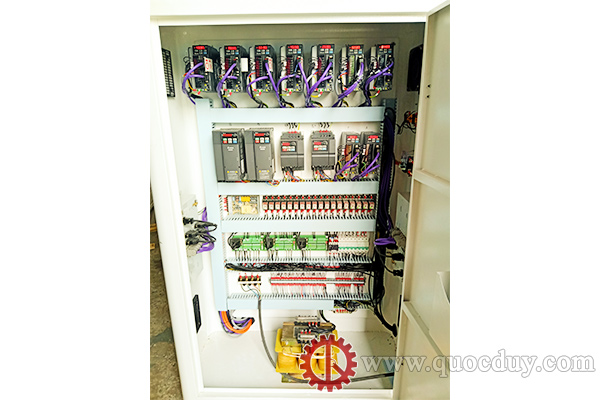

Power system
 |

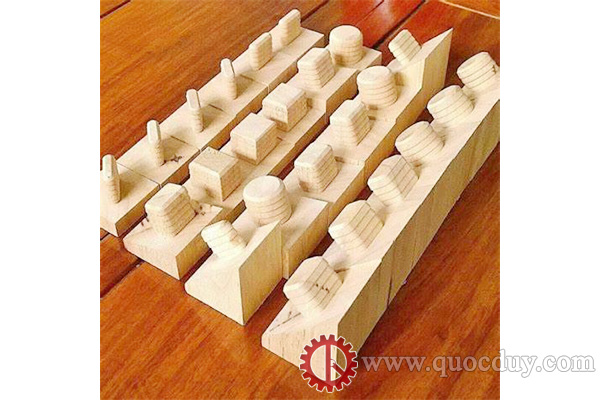

Product
 |
