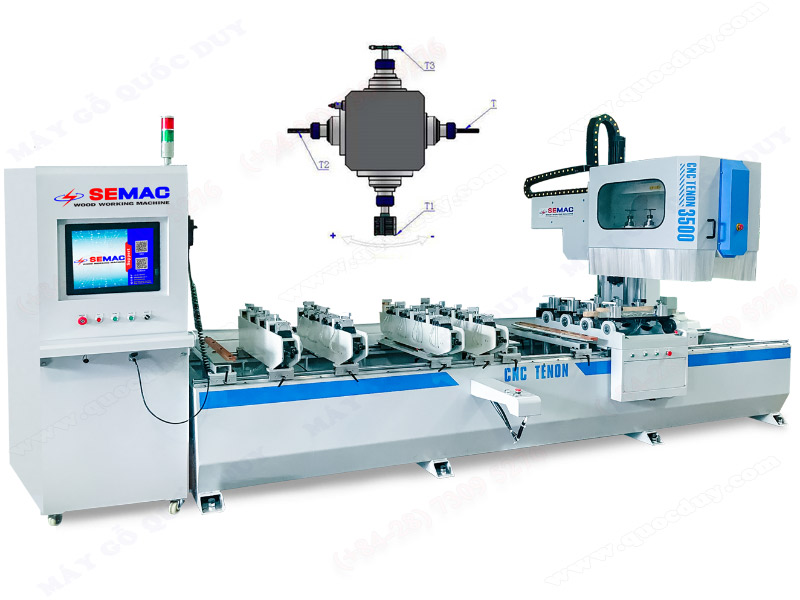

CNC TENONER MACHINE
The machine is used to make square, tenon, straight groove, curved and drill,... Suitable for the production of traditional wooden furniture, modern wooden furniture, windows, sofa legs..
- :SMT4X4-3500RT
- :Semac - Quoc Duy
- :12 months
- :Call
- :
 |  |
Model: SMT4X4-3500RT
|
Feature
|
|
|
- The multi-head multi-axis design helps save processing time and improve working efficiency
- Clamping devices ensures workpiece are to be fixed, anti-moving when machine processing
- Just one set up, it is possible to process workpieces, the highest performance. The operation interface is simple and easy to use with 3D view mode
|
|
|
Specification
|
|
| No.of spindle |
4 axis ( X,Y,Z,A)
|
|
Motor power
|
5.5 Kw x 4, 3 Kw x 4
|
|
Max processing length
|
3900 mm
|
|
Max processing width
|
150 mm
|
|
Max processing height
|
120 mm
|
|
Operating voltage
|
380V
|
|
Working pressure
|
7-8kg/m2
|
|
Spindle speed
|
10000-18000 rpm (can adjustable)
|
|
Processing speed
|
Stepless speed regulation |
| Machine size | 4600 x 2850 x 2600mm |
| Weight | 3200 kgs |
