CNC DOVETAIL MACHINE
CNC dovetail machine SMHF-650 has a 18,000 rpm spindle, and is 50% faster (60 boxes/hour) than the conventional . This is an excellent machine for the high end dovetail drawer maker who wants to offer the best dovetail drawer possible, appreciating the advantages and flexibility of CNC machines
- :SMHF-650
- :Semac - Quoc Duy
- :12 months
- :Call
- :
 |  |

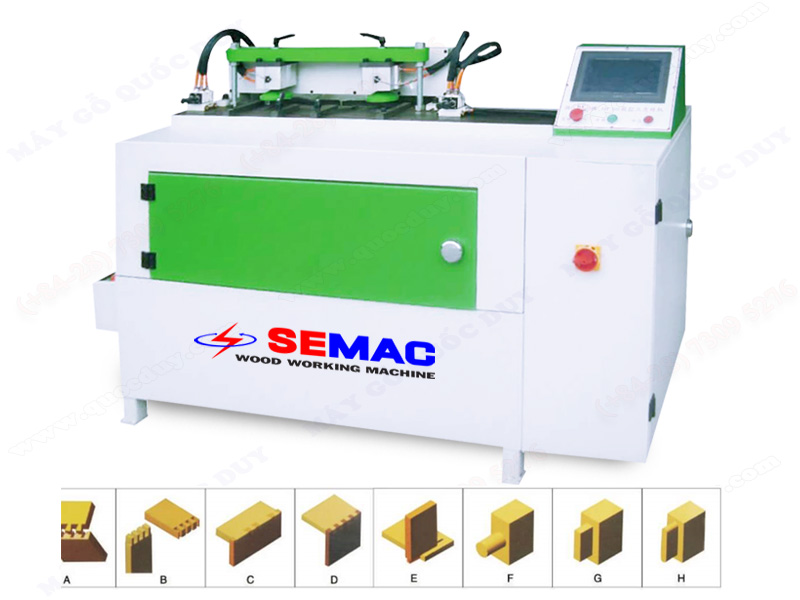

CNC DOVETAIL MACHINE
Model: SMHF-650
| Specifications | |
|
Spindle speed
|
: 18000 rpm
|
|
Spindle motor
|
: 3.5 kw
|
|
Working width
|
: 10 – 650 mm
|
|
Processing thickness
|
: 5 – 25 mm
|
|
Tenoning space
|
: Adjustable
|
|
Process cycle
|
: 3 – 30 s
|
|
Processing tenon
|
: A.B.C.D.E.F.G.H
|
|
Net weight
|
: 700 kg
|
|
Machine size
|
: 1890 x 860 x 1190 mm
|
| Video | |
