CONTINUOUS DOVETAILER (FOR CURVED BOARD)
Cuts dovetailed tenons/mortises simultaneously for accurate jointing Dovetailed width and depth are adjustable. Continuous tenoning motion Automatic motion cycle provides efficient, economical operation
- :YC-480A
- :Taiwan
- :12 month
- :Call
- :
 |  |
CONTINUOUS DOVETAILER

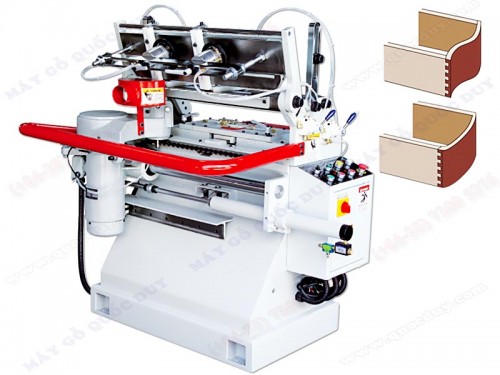

Model: YC-480A
| Features | |
|
- Cuts dovetailed tenons/mortises simultaneously for accurate jointing
- Dovetailed width and depth are adjustable.
- Continuous tenoning motion
- Automatic motion cycle provides efficient, economical operation
- High spindle speed 20.000 rpm
- Simple to operate, simple to maintain
- 3 feed speeds change suitable for cutting various wood materials
|
|
 |
Rugged guide rod
Tenoning head feeds on an oversized guide rod, hard chrome plated, for max stability of tenoning operation and max wear resistance
|
 |
Centralized control panel
All of the machine motion controls are centralized on one control panel for operation convenienco. Control functions include single start/stop, manual/automatic mode selection
|
 |
Automatic lubricator
With automatic lubricator provides YC 480 longer life
|
 |
Stable tenoning head
The tenoning head is driven by a 2 HP motor with 20.000 rpm high spindle speed. Cutter bit can be micrometrically adjusted for tenon/mortise width
|
 |
Cuts dovetailed tenon and mortise simultaneously

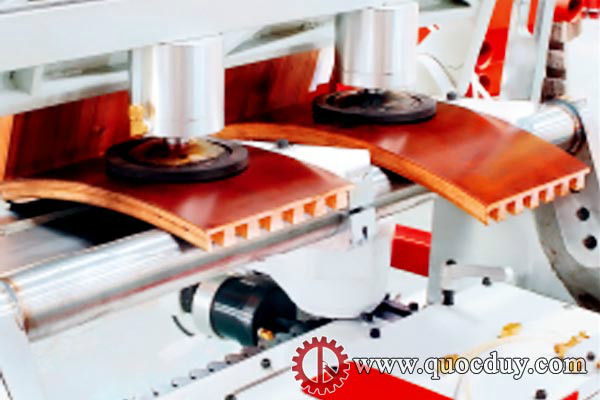

The workpiece to be jointed are placed together on the machine for cutting dovetailed tenons and mortises simultaneously, ensuring high accuracy jointing effect
|
 |
Replaceable Mold. Easy for Maintenance
Easily clean the wood chips inside the molds by only taking off the two dust-proof covers.
|
| Specifications | |
|
Tenon thickness
|
Min.10 mm, Max.20 mm
|
|
Tenon width
|
Min.10 mm, Max.18 mm
|
|
Tenon depth
|
Min.10 mm, Max.20 mm
|
|
Spindle vertical adjustment
|
30 mm
|
|
Table tilting angle
|
-10˚~+20˚
|
|
Maximum calmping device tilts
|
tilting
|
|
Maximum workpiece sizes
|
Length 1500 mm, Width 480 mm
|
|
Collect chuck capacity
|
Ø12 mm
|
|
Numbers of air clamps
|
4 PCS
|
|
Spindle speeds
|
21,500 R.P.M.
|
|
Spindle motor
|
2 HP
|
|
Working air pressure
|
6 BAR
|
|
Total horsepower
|
3 kw (4 HP)
|
|
Dust hood outlet diameter
|
ø3" x 1
|
|
Frequency inverter
|
Optional
|
|
Machine dimensions
|
1270 x 780 x 1330 mm
|
|
Packing dimensions
|
1420 x 910 x 1450 mm
|
|
Net / Gross weight
|
410 / 460 kgs
|
