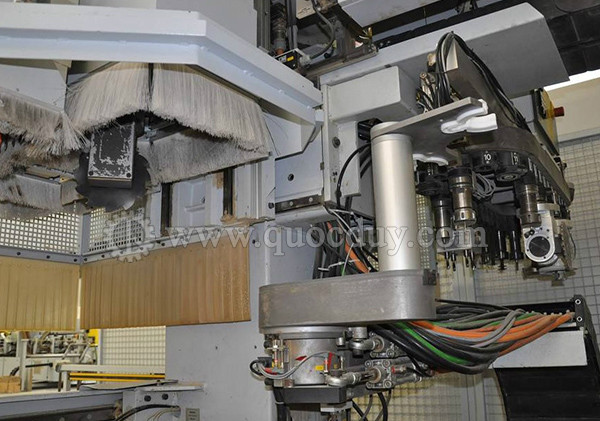

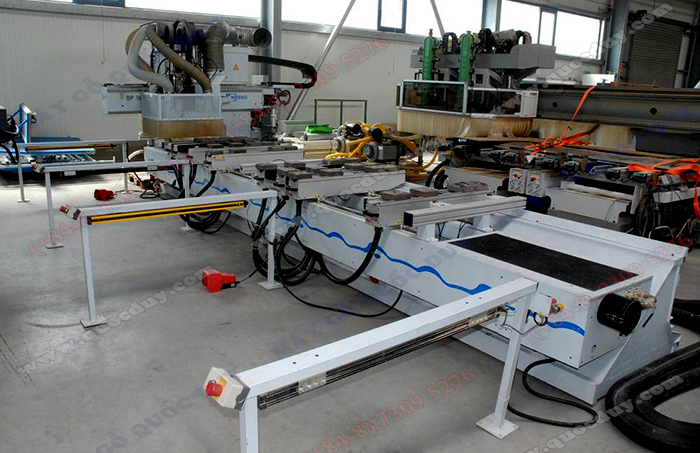

CNC MACHINING CENTER
CNC MACHINING CENTER
Machine condition : 85%
| Specifications | |
|
Working length ( X - axis)
|
4000 mm
|
|
Working width ( Y - axis )
|
1000mm
|
|
Tool numbers
|
8 pcs
|
|
Servos motor C - axis
|
7.5 Kw (18000 rpm)
|
|
Servos motor X- axis
|
1.5 Kw
|
|
Servos motor Y - axis
|
1.5 Kw
|
|
Vacuum motor
|
3 – 3.6 kw ( 100 – 120 m3/h)
|
|
The number of vertical drilling head (X axis)
|
2 pcs
|
|
The number of vertical drilling head (Y axis)
|
2 pcs
|
|
The number of horizontal drilling head (axis X)
|
6 pcs
|
|
The number of horizontal drilling head (axis Y)
|
2 pcs
|
|
Control cabinets of HOMATIC 2000 IPC
|
|
|
Machine size
|
9400 x 2500 x 2670 mm
|
