CNC ROUTER MACHINE
CNC ROUTER MACHINE
Model: Arrow-FT-SC
| Specifications | |
|
X - Axis stroke
|
: 3200 mm
|
|
Y - Axis stroke
|
: 2600 mm
|
|
Z - Axis stroke
|
: 300 mm
|
|
Motor spindle
|
: HSD 13.5 kw x 2
|
|
Speed spindle
|
: 24000 rpm
|
|
X servo motor
|
: 1.3 kw
|
|
Y1 - servo motor
|
: 4.4 kw
|
|
Y2 - servo motor
|
: 4.4 kw
|
|
Z1 - servo motor
|
: 1.3 kw
|
|
Z2 - servo motor
|
: 1.3 kw
|
|
Working table size
|
: 1600 x 2500 mm x 2
|
|
Work table
|
: 2 pcs
|
|

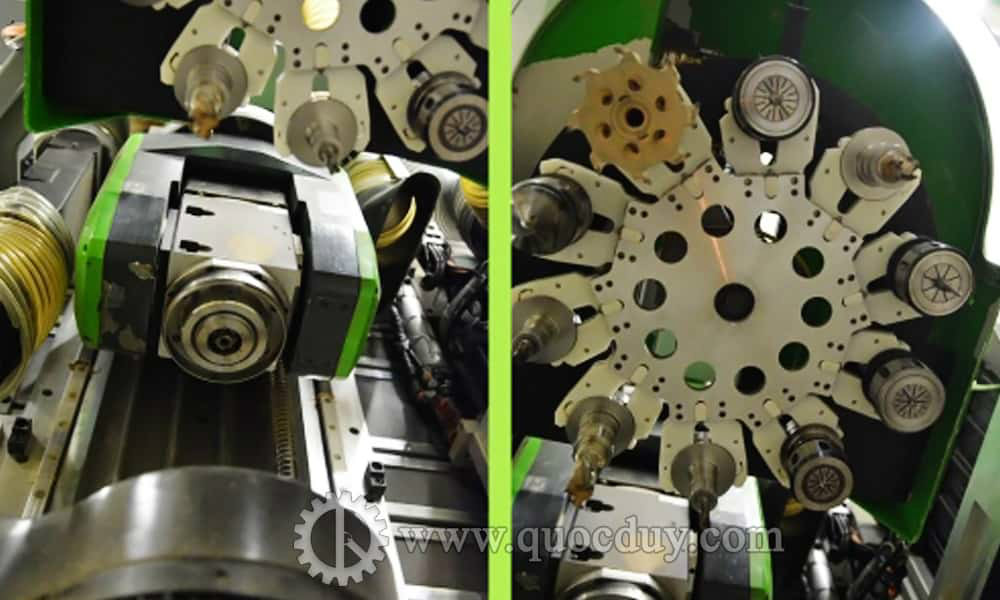

Tool tray
|
: 10 pcs x 2
|
|
Tool clamping system
|
: HSK-F63
|
|
Pressure
|
: 7-8 kg/cm²
|
|
Vacuum motor
|
: 7.5 kw
|
|
Net weight
|
: 9000 kgs
|
|
Machine size
|
: 6500 x 6600 x 3500 mm
|
|
Cabinet electric size
|
: 2100 x 600 x 1800 mm
|
