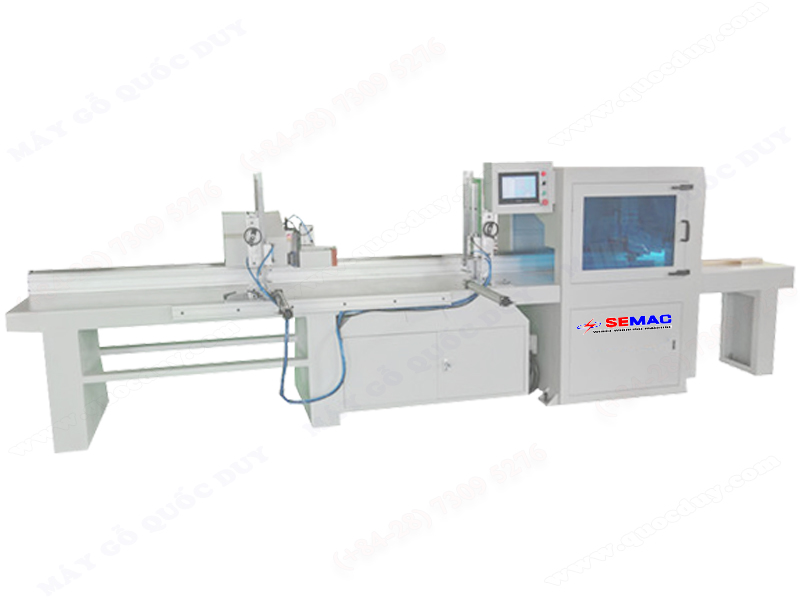

CNC OPTIMIZSING SAW MACHINE
CNC OPTIMIZSING SAW MACHINE
Model: SM - 6AL
Specifications
|
|
Working length
|
: 4000 (option: 6000 mm)
|
Working width
|
: 10 – 230 mm
|
Working thickness
|
: 10 – 80 mm
|
Working cut area
|
: 250 x 30 mm
|
Scanning speed
|
: 80 m/min
|
Sawblade motor
|
: 7.5 kw
|
Speed motor
|
: 0.75 kw
|
Sawblade Dia.
|
: Ø 450 x 30
|
Dust collector dia.
|
: Ø 100 mm
|
Total installed power
|
: 8.25 kw
|
Worktable height
|
: 900 mm
|
Net weight
|
: 1000 kg
|
Machine size
|
: 6700 x 1300 x 1600 mm
|
