CNC ROUTER FOR DOOR LOCK MAKING MACHINE
CNC ROUTER FOR DOOR LOCK MAKING MACHINE

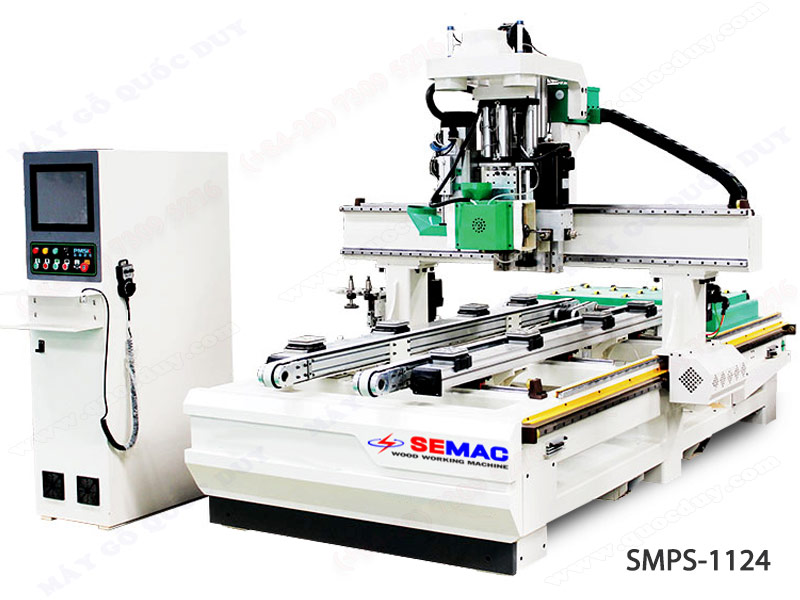

Model: SMPS-1124
| Specifications | |
|
Working leght
|
: 1800 -2400mm
|
|
Working width
|
: 600-1100mm
|
|
Working thickness
|
: 20-80mm
|
|
Processing speed
|
: 20m/min
|
|
Motor servo
|
: Delta
|
|
Giảm tốc
|
: Hãng Shimpo- Nhật BẢn
|
|
Slider
|
: H20/H25 – Taiwan
|
|

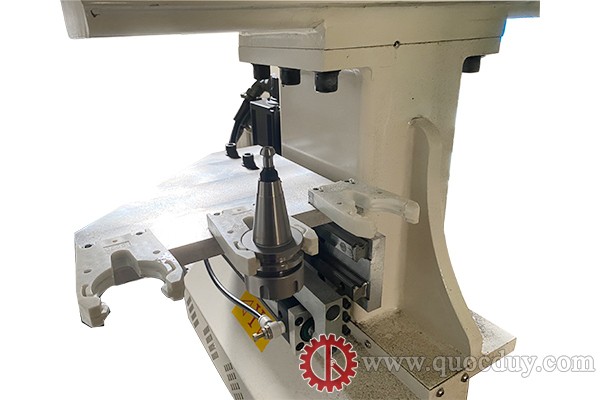

Tool magazine
|
: follow type straight tool magazine (capacity three)
|
|
Clamp
|
: 5
|
|

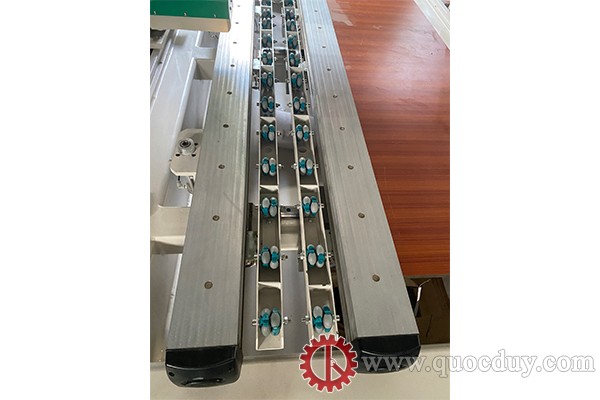

Workpiece clamp
|
: vacuum
|
|
Total power
|
: 20kw
|
|
Voltage
|
: 380V/50Hz
|
|
Air pressure
|
: ≥ 6.5kgf/cm2
|
|

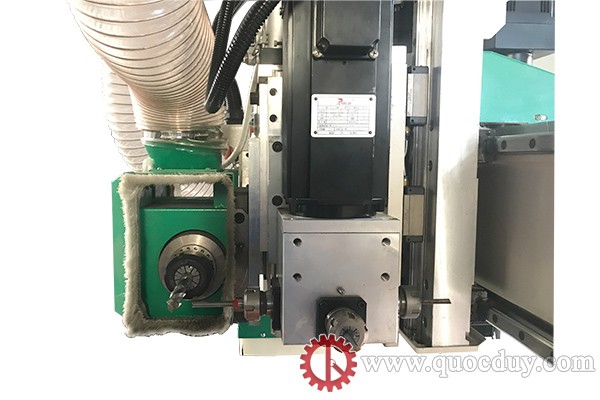

Milling heads
|
: 2.2KW high precision, imported bearings and gears
|
|
Horizontal spindle
|
: 7.5KW air-cooled manual tool change spindle
|
|
Vertical spindle
|
: 9KW air-cooled automatic tool change spindle
|
|
Net weight
|
: 2650 kg
|
|
Machine size
|
: 3650 x 2200 x 2300mm
|
