4 HEADS CNC ROUTER MACHINE WITH DOUBLE TABLE
- :SKG 604A
- :Semac - Quoc Duy
- :12 months
- :Call
- :
 |  |

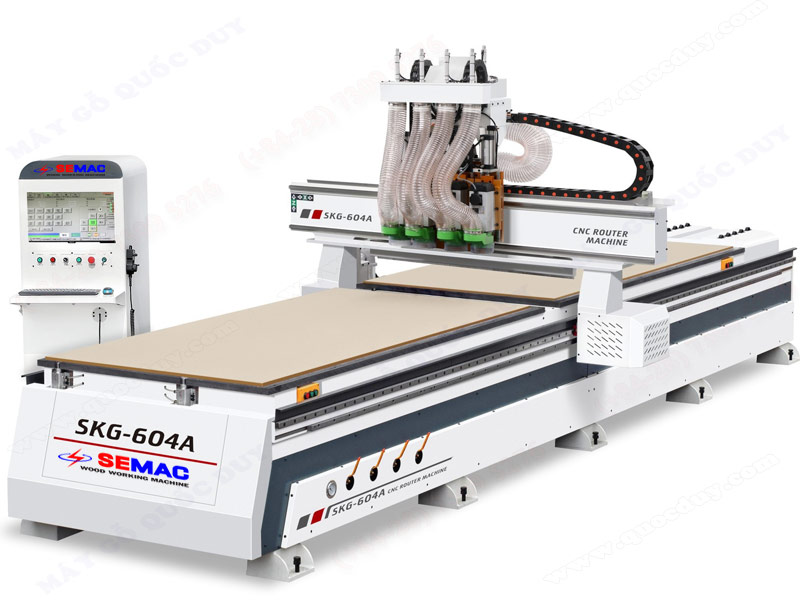

4 HEADS CNC ROUTER MACHINE WITH DOUBLE TABLE
Model: SKG 604A
|
Features
|
|
|
Equipped with 4 flexible knife heads
The control system is designed to be user-friendly and easy to operate
Automatic lubricating oil pump system, helping to prolong the machine's service life
The travel of the axes works stably
|
|
|
Specification
|
|
|
X – axis stroke
|
: 1220 mm
|
|
Y – axis stroke
|
: 2800 mm
|
|
Z – axis stroke
|
: 200 mm
|
|
Accuracy
|
: ±0.05 mm
|
|
Max.X-axis speed
|
: 80 m/phút
|
|
Max.Y-axis speed
|
: 80 m/phút
|
|
Max.Z-axis speed
|
: 20 m/phút
|
|
Spindle power
|
: 6 kw
|
|
Spindle speed
|
: 18000 rpm
|
|
Drive system
|
: motor servo,driver
|
|
Vacuum pump
|
: Dry vacuum pump
|
|
Vacuum pump power
|
: 7.5 kw
|
|
Control system
|
: TaiWan Syntec
|
|
Voltaget
|
: 380V, 3 pha, 50Hz
|
|
Machine size
|
: 6945 x 3390 x 2954 mm
|
|
Net weight
|
: 4200 kg
|
|
Table work
|
: 2 tables, vacuum
|
|
X,Y - axis
|
: rack form
|
|
Z - axis
|
: lead screw
|
|
Software
|
: Jdpaint, Alphacam, etc. Compatible CAD/CAM software, G-code identification, *.NC
|
