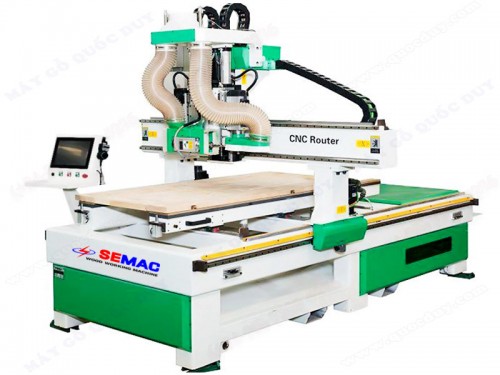

CNC ROUTER FOR DOOR LOCK MAKING MACHINE
Cnc router for door lock making machine can process the door cap, the door core, the door sill, the middle ridge parts. High processing efficiency and high precision.
- :SM-5.2-1325
- :Semac - Quoc Duy
- :12 months
- :Call
- :
 |  |
CNC ROUTER FOR DOOR LOCK MAKING MACHINE
Model: : SM-5.2-1325
|
Feature
|
|
|
- Solid wood assembly doors, solid wood cabinet doors, solid wood wardrobe doors, solid wood frame cabinets, solid wood retaining walls. - It adopts high-end CNC system, which is easy to operate and can process various styles of combined shapes and styles according to design requirements. - A lot of functions, can process the door cap, the door core, the door sill, the middle ridge parts. - High processing efficiency and high precision. - Economical and practical, low energy consumption, labor saving, multi-function, high cost performance and so on. |
|
 Positioning scale
|
 High-power dual output electric spindle |
 High precision four milling head
|
 Processing hinge hole
|
| Specification | |
|
Door width
|
: 600-1100mm
|
|
Door length
|
: 1800-2440mm
|
|
Door thickness
|
: 20-60mm
|
|
Moving speed
|
: 60m/min
|
|
1# Lock hole motor 1#
|
: 6 KW
|
|
2# Lock hole motor 2#
|
: 6 KW
|
|
Hinge hole motor
|
: 2.2KW
|
|
Diameter of dust collecting tube
|
: 150mm
|
|
Pressure
|
: 0.6MPA
|
|
Net weight
|
: 3000Kg
|
|
Power
|
: 21KW
|
|
Overall size
|
: 3500×2000×2400mm
|
