CNC SEAT MORTISING MACHINE 1500MM
CNC SEAT MORTISING MACHINE 1500MM

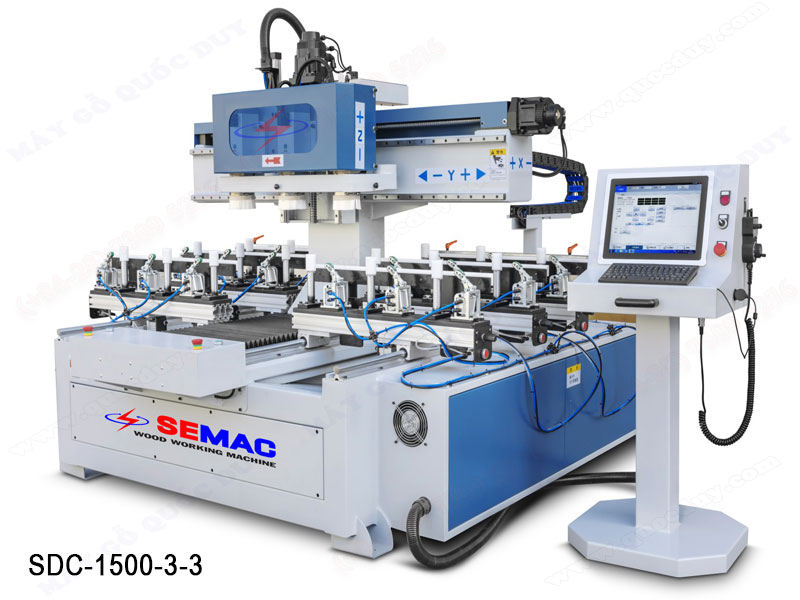

Model: SDC-1500-3-3
| Specifications | |
|
Travel X-Axis
|
: 1500 mm
|
|
Travel Y-Axis
|
: 1100 mm
|
|
Travel Z-Axis
|
: 220 mm
|
|
Min. distance between 2 spindle
|
: 200 mm
|
|
Spindle speed
|
: 18000 rpm
|
|
Spindle motor
|
: 3.7 kw x 3
|
|
Travel servo motor
|
: 0.85 kw x 3
|
|
Total capacity
|
: 13.65 kw
|
|
Net weight
|
: 1300 kgs
|
|
Machine size
|
: 2400 x 2230 x 1900 mm
|
