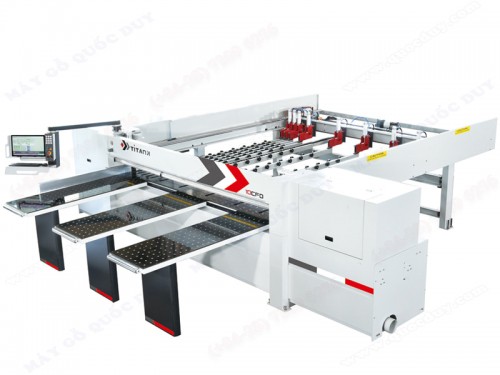

COMPUTER PANEL SAW

Model: TPS-10CFD

Specifications
Max. cutting length	: 3200mm
Max. cutting depth	: Max.100 mm
Main sawblade diameter	: Ø405mm
Main sawblade arbor diameter	: Ø60mm
Main sawblade speed	: 4700R.P.M.
Scoring sawblade diameter	: Ø180mm
Scoring sawblade arbor diameter	: Ø45mm
Scoring sawblade speed	: 5400R.P.M.
Saw carriage forward speed	: 100 M/min
Saw carriage return speed	: 120 M/min
Main sawblade motor	: 15HP
Scoring sawblade motor	: 3HP
Saw carriage drive motor	: 1KW
High Pressure blower motor	: 5HP
Machine bed blower motor	: 3HP
Pusher feed motor	: 1KW
Pusher feed speed	: 80M/min
Working air pressure	: 5kg/cm2
Table height from floor	: 900mm
