DOUBLE COLUMN CNC ROUTER

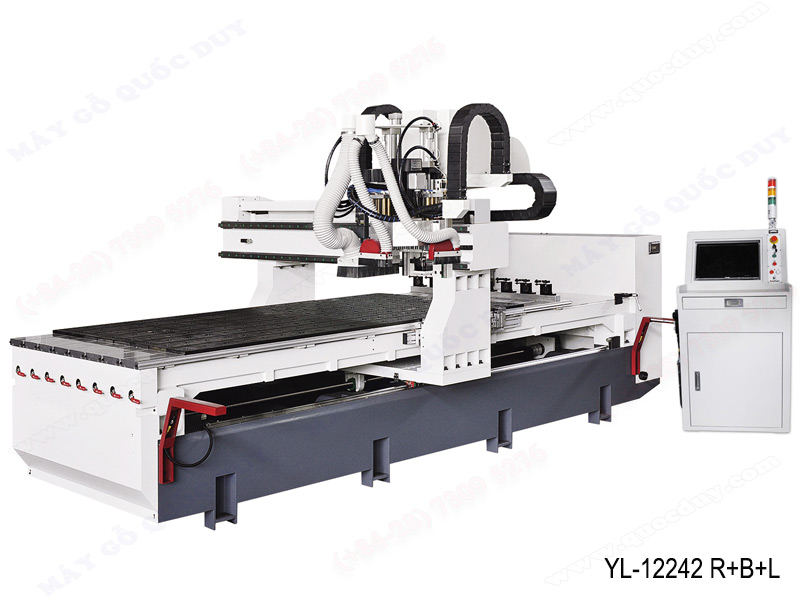

Model: YL-12242 R+B+L
|
Features
|
|
|
*TFT 19" colourful LCD colour screen display.
*Keyboard for PC
*Process graphic display on screen.
*English & Chinese are exchangeable, conversational operation.
*The controller is provided with two ports for onilne with internet and features USB transfer function.
|
|
|
Remarks
|
|
|
The buyer also need provide following equipments.
* Personal Computer
*Wood dust collector: We recommend the use of an independent system with power 5HP, inlet 4"
* 2 pc fuse switch 50 AMP
*Air compressor:6kg/cm2.
*We suggest to use a independent system, otherwise, machine will be influenced by other factors,
and then causes the machine stopped due to air pressure difference.
*Hard Cement Ground
*The person who will be training CAD/CAM software Programming should know AUTO CAD.
*Voltage stabilizers with 15HP is required, if the voltage is unstable in your country.
|
|
|
Max.workpiece sizes
|
: 1219 x 2438 mm
|
|
X-axis travel
|
: 1720 mm
|
|
Y-axis travel
|
: 2870 mm
|
|
Z-axis travel
|
: 280 mm
|
|
Spindle nose to table
|
: 210 mm
|
|
Distance between columns
|
: 1387 mm
|
|
Table area
|
: 1220x2440 mm
|
|
Cutting feed rate
|
: 8 M/min
|
|
X-axis rapid traverse
|
: 40 M/min
|
|
Y-axis rapid traverse
|
: 40 M/min
|
|
Z-axis rapid traverse
|
: 10 M/min
|
|
Spindle speed (Variable)
|
: 1000~24000 rpm
|
|
Spindle taper
|
: ISO 30
|
|
Magazine type
|
: Umbrella type/ Linear type
|
|
Tool shank
|
: ER 32
|
|
Tool numbers
|
: 8 pcs
|
|
Shelf
|
: 8 pcs
|
|
Collect
|
: 8 pcs
|
|
Power
|
: 2.5HP
|
|
Vertical spindles
|
: 9 pcs (5 in X-axis, 4 in Y-axis)
|
|
Horizontal spindles
|
: 4 pcs (2 in X-axis, 2 in Y-axis)
|
|
Max.sawblade Ø120mm
|
: 2 pcs (1 in X-axis, 1 in Y-axis)
|
|
Router bit sizes
|
: 1~100 mm
|
|
Collect sizes
|
: 1~20 mm
|
|
Spindle motor
|
: 9.6 KW
|
|
X-axis motor
|
: 1.5 KW
|
|
Y-axis motor
|
: 2 KW
|
|
Z-axis motor
|
: 1.5 KW
|
|
Vacuum pump motor
|
: 7.5 HP
|
|
Air pressure required
|
: 6 kgf/cm²
|
|
Dimentions
|
: 2250x4230x2160 mm
|
|
Packing dimensions
|
: 2300 x 5360 x 2250 mm
|
|
Net weight
|
: 5500 Kgs
|
|
Gross weight
|
: 6000 Kgs
|
