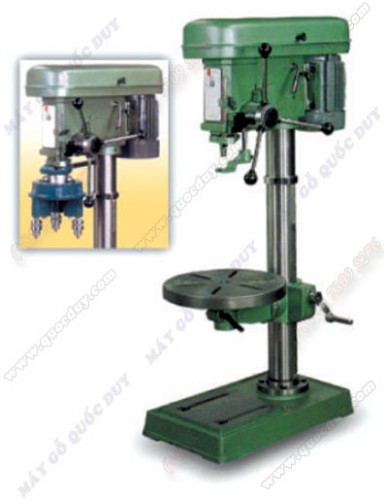

ELECTRIC DRILLING AND TAPPING MACHINE
- :JCMD-430
- :Taiwan
- :12 month
- :Call
- :
 |  |
ELECTRIC DRILLING AND TAPPING MACHINE
Model: JCMD-430
| Specifications | |
|
Spindle speeds
|
6
|
|
Drilling capacity
|
Þ13
|
|
Tapping capacity
|
4 – 12
|
|
Swing
|
360
|
|
Distance from spindle nose to table
|
480 mm
|
|
Distance from spindle nose to base
|
650 mm
|
|
Taper of spindle
|
2.5
|
|
Tavel of spindle
|
80
|
|
Spindle speed
|
240 – 1760 rpm
|
|
Diameter of speed
|
Þ 80 mm
|
|
Table size
|
Þ 320 mm
|
|
Base size
|
505 x 305 mm
|
|
Overal high
|
1050 mm
|
|
Motor
|
1/2 HP
|
|
Net weight
|
76 kgs
|
|
Packing size
|
890 x 525 x 355 mm
|
