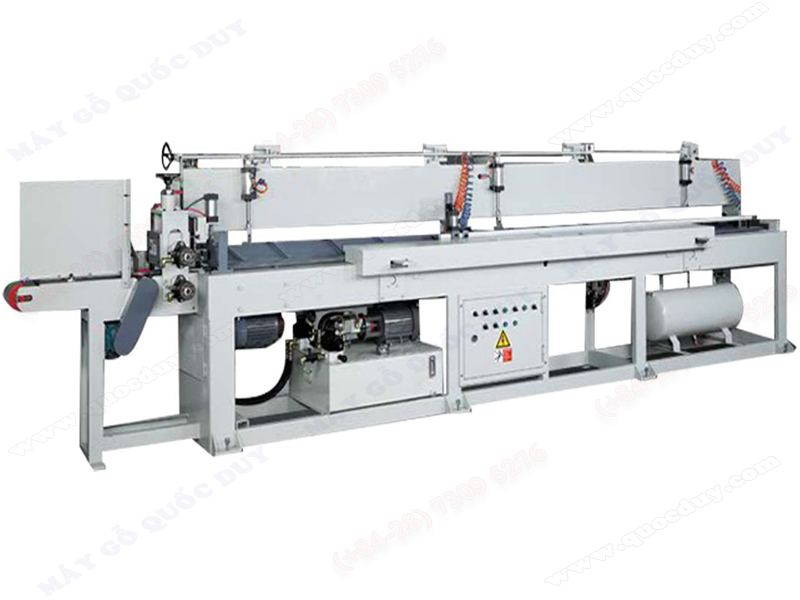

FINGER JOINT ASSEMBLER

Model: YNF-20AH

Specification
Length of working table	6200 mm
Available length of workpiece	2500 ~ 6200 mm
Available thickness of workpiece	20 ~ 80 mm
Available width of workpiece	30 ~ 150 mm
Spindle diameter	25.4 mm (1") or 30 mm
Spindle speed	3600 rpm ~ 60 Hz
	3000 rpm ~ 50 Hz
Saw diameter	304.8 mm (12")
Conveyor belt	1/2 HP
Cut off saw	3 HP
Hydraulic pump	5 HP
Feeding speed	63.8 m/min ~ 50Hz
	70.2 m/min ~ 60Hz
Dia. of exhaust hood	4" x 1
Air consumption	6 kg / cm2
Machine size	7250 x 1270 x 1550 mm
Packing size	7400 x 900 x 1700 mm
Net weight	2550 kgs
