HORIZONTAL FULLY AUTO FINGER JOINT SYSTEM-SINGLE CHAIN TYPE
HORIZONTAL FULLY AUTO FINGER JOINT SYSTEM-SINGLE CHAIN TYPE

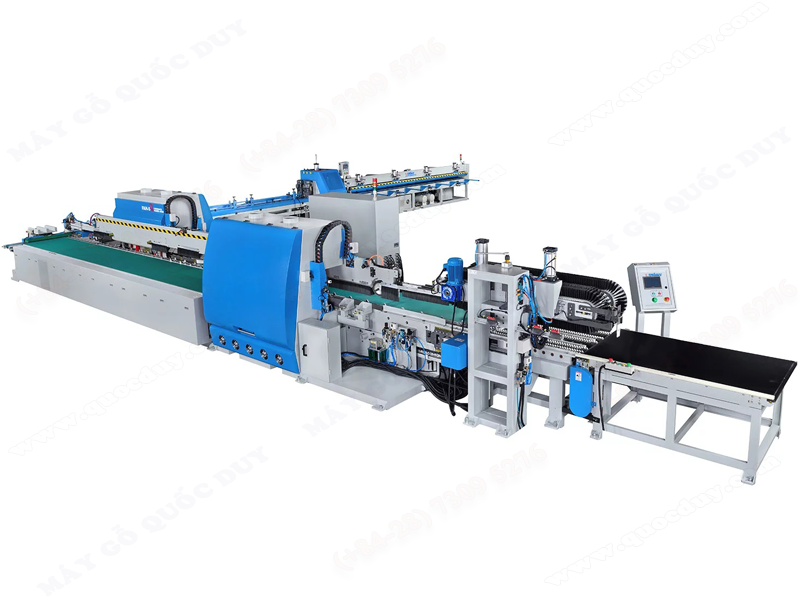

Model: FAH – F1
|
GENERAL SPECIFICATIONS
|
|
|
Working length
|
: 150 – 800 mm (Timber length to be processed must be at least 50% longer than the timber width to be processed)
|
|
Working thickness
|
: 16 - 60 mm
|
|
Working width
|
: 25 - 150 mm
|
|
Out-feed length
|
: 3000 - 6200 mm
|
|
Glue type to be used
|
: PVAC
|
|
Timber must be processed via four sides moulder machine (tolerance: ±0.2mm) and wood needs 90 degrees right angle, four planning clear, straight.
|
|
|
FEEDING SYSTEM
|
|
|
Working length
|
: 150 – 800 mm
|
|
Working thickness
|
: 15 – 60 mm
|
|
Working width
|
: 25 – 150 mm
|
|
Motor
|
: 2HP +1:30
|
|
TABLE FEEDING SYSTEM
|
|
|
Working length
|
: 150 - 800 mm
|
|
Working thickness
|
: 15 - 60 mm
|
|
Working width
|
: 25 - 150 mm
|
|
Main feeding chain servo drive motor
|
: 15 kw + 1 : 40
|
|
Working feeding speed
|
: 120 pcs/min
|
|
Reverse feeding motor
|
: 2HP + 1 : 10
|
|
Press device up/down drive motor
|
: 3 Hp
|
|
SHAPING DEVICE(R)
|
|
|
Working length
|
: 150 – 800 mm
|
|
Working thickness
|
: 15 - 60 mm
|
|
Working width
|
: 25 - 150 mm
|
|
Motor of finger spindle
|
: 25 Hp x 1 pcs
|
|
Spindle size
|
: Ø 50 (70) mm
|
|
OD of finger cutter
|
: Ø 250mm
|
|
Speed spindle
|
: 4600 rpm at 50Hz/ 5500 rpm at 60Hz
|
|
Power of Cut-off saw
|
: 15 Hp x 1 pcs
|
|
Size cut-off saw
|
: 305 x 80T x 5 mm
|
|
: 290 x 40T x 5 mm
|
|
|
Speed cut-off saw
|
: 4300 rpm
|
|
Power of scoring saw
|
: 3 Hp x 1 pcs
|
|
Size scoring saw
|
: 180 x 50T x 5 mm
|
|
Speed scoring saw spindle
|
: 4200 rpm
|
|
SHAPING DEVICE(L)
|
|
|
Working length
|
: 150 - 800 mm
|
|
Working thickness
|
: 15 - 60 mm
|
|
Working width
|
: 25 - 150 mm
|
|
Motor of finger spindle
|
: 25 Hp x 1 pcs
|
|
Spindle size
|
: ID50 (70) mm
|
|
OD of finger cutter
|
: Ø 250 mm
|
|
Speed spindle
|
: 4600 rpm at 50Hz / 5500 rpm at 60Hz
|
|
Power of Cut-off saw
|
: 15 Hp x 1 pcs
|
|
Size cut-off saw
|
: 305 x 80T x 5 mm
|
|
: 290 x 40T x 5 mm
|
|
|
Speed cut-off saw
|
: 4300 rpm
|
|
Power of scoring saw
|
: 3 Hp x 2 pcs
|
|
Size scoring saw
|
: 180 x 50T x 5 mm
|
|
Speed scoring saw spindle
|
: 4200 rpm/min
|
|
GLUE SYMTEM
|
|
|
Glue roller
|
|
|
Standard glue height
|
: H=150 mm. Pitch 4.0 mm. L=10 mm-12
|
|
OUT-FEED
|
|
|
Working length
|
: 150 – 800 mm
|
|
Working thickness
|
: 15 – 60 mm
|
|
Working width
|
: 25 – 150 mm
|
|
Feed speed
|
: 70 m/min
|
|
Motor
|
: 3 Hp x 1pcs
|
|
Vacuum device – blower
|
: 5 Hp (3’’ Vacuum port)
|
|
HSC-65 PRE-JOINT
|
|
|
Working length
|
: 6500 mm
|
|
Working thickness
|
: 15 - 90 mm
|
|
Working width
|
: 20 - 150 mm
|
|
Feed motor
|
: 3 Hp x 2 pcs
|
|
Chain type
|
: Double chain - flat type
|
|
Feed speed
|
: 10 – 90 m/min
|
|
NFJ-B 6METER ASSEMBLER
|
|
|
Working length
|
: 20 - 150 mm
|
|
Working thickness
|
: 15 - 75 mm
|
|
Working width
|
: 6000 mm
|
|
Power of upper & lower roller
|
: 2 Hp x 4pcs
|
|
In-feed inverter
|
: 5 Hp x 2 pcs
|
|
In-feed speed
|
: 10 -70 m/min
|
|
Power cut-off saw
|
: 5 Hp x 1 pcs
|
|
Dimensions cut-off saw
|
: 355 x 120T x 25.4 mm x 1pcs
|
|
Speed cut-off saw
|
: 2850 rpm
|
|
Hydraulic power
|
: 5 Hp x 1 pcs
|
|
Capacity /min
|
: 1 - 8 pcs/min
|
|
MECHANICAL PARTS BRAND
|
|
|
Air cylinder
|
: AIRTAC – TAIWAN
|
|
Solenoid valve
|
: AIRTAC – TAIWAN
|
|
Linear guide-way
|
: PMI– TAIWAN
|
|
PLC
|
: MITSUBISHI - JAPAN
|
|
Inverter
|
: SCHNEIDER – FRANCE
|
|
Electronic parts
|
: SCHNEIDER – FRANCE
|
|
Hydraulic solenoid valve
|
: YUSAN-TAIWAN
|
|
Bearing
|
: NSK&NACHI – JAPAN
|
|
Motor
|
: FUKUTA – TAIWAN
|
|
Motor servo
|
: MITSUBISHI - JAPAN
|
|
Photo sensor switch
|
: LEUZE &SICK - GERMANY
|
|
Wire
|
: IGUS- GERMANY
|
|
