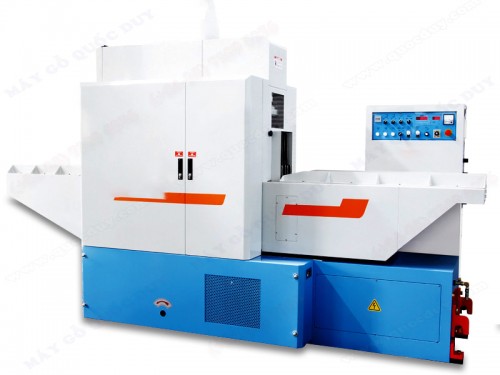

FRAME SAW
FRAME SAW
Model: FR-200
| Features | |
Convenient control panel
The centralized control panel provides mazimum operation convenience. Major control functions... |
|
 Upper feed roller adopts chain drive with chain allowance automatic compensation system attached. |
|
 Feed Fences Can Be Changed to Suit Various Wood Materials |
|
|
Specifications
|
|
|
Motor
|
: 20 HP+1/4HP + 5kw(kind servo) + 2 Hp
|
|
Maximum working thickness
|
: 200 mm
|
|
Work smallest thickness
|
: 60 mm
|
|
Maximum working width
|
: 150 mm
|
|
Minimal working length
|
: 150 mm
|
|
Spindle underside
|
: 7 pieces forward & 5 pieces behind
|
|
Spindle on the front
|
: 7 pieces & 1 xilanh control by sensor
|
|
Spindle on the following
|
: 5 pieces & 1 xilanh control by sensor
|
|
Feed speed
|
: 0.5 -2 m/min
|
|
Speed saw blade
|
: 480rpm ,itinerary 210mm
|
|
specification saw blade
|
: 500x40x0.8 m
|
|
Sawblade width
|
: 1.2 mm
|
|
Saw kerf
|
: 1.1 – 1.4 mm
|
|
Min prescision thickness
|
: 1.5 mm
|
|
Distance between 2 saw
|
: 1.2 – 1.6 mm
|
| Net weight | : 3100 x 1000 x 1900mm |
|
Gross weight
|
: 3700 kg
|
|
